Repair [10/2018 - ]: Procedure
- INSTALL UPPER HEADLIGHT PROTECTOR RETAINER LH

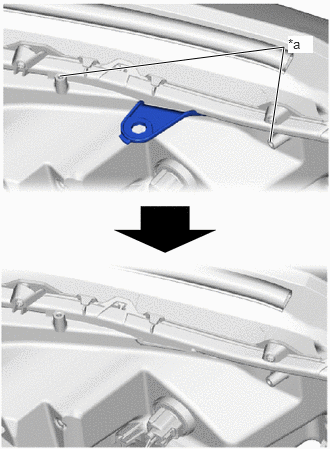

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
*a Boss HINT:
After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

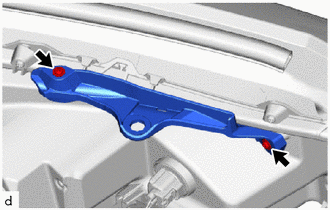

- Install the upper headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
- INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER LH

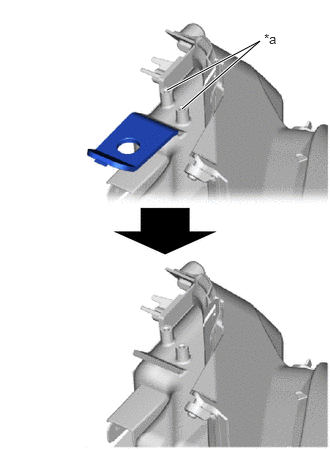

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
*a Boss HINT:
After cutting off the part, place the upper No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

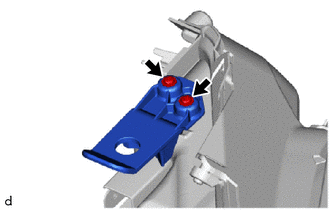

- Install the upper No. 2 headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
- INSTALL LOWER HEADLIGHT PROTECTOR RETAINER LH

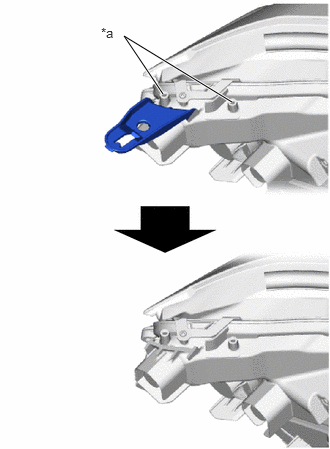

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
*a Boss HINT:
After cutting off the part, place the lower No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

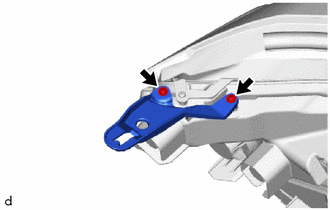

- Install the lower No. 2 headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
- INSTALL LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER LH

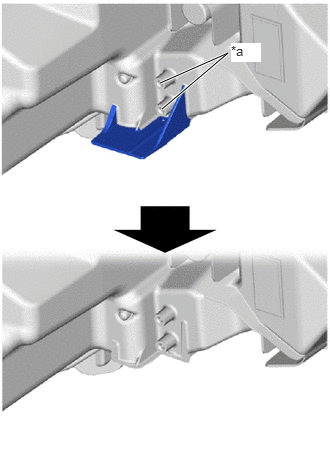

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
*a Boss HINT:
After cutting off the part, place the lower No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

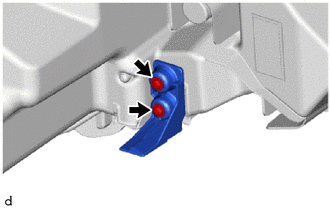

- Install the lower No. 2 headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
