Removal [10/2018 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY (for Sport Package)

    Refer to REMOVAL [10/2018 - ]

  2. REMOVE FRONT BUMPER ASSEMBLY (except Sport Package)

    Refer to REMOVAL [10/2018 - ]

  3. REMOVE CENTER HOOD CUSHION

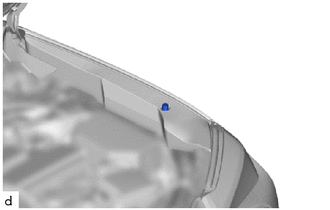

    1. Remove the center hood cushion.
      GTY816755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FENDER APRON MUDGUARD SEAL SUB-ASSEMBLY

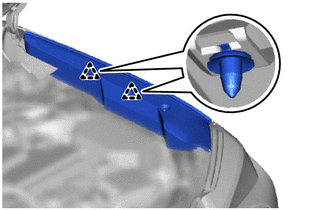

    1. Disengage the clips to remove the fender apron mudguard seal sub-assembly.
      GTY836418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HEADLIGHT ASSEMBLY

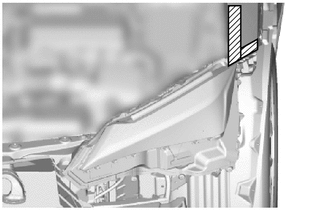

    1. Apply protective tape around the headlight assembly as shown in the illustration.
      GTY803281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. w/ Headlight ECU:

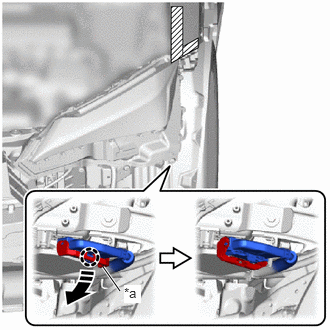

      1. Disengage the claw to release the connector lock lever and disconnect the connector as shown in the illustration.
        GTY838404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Connector Lock Lever
        Disconnect in this Direction

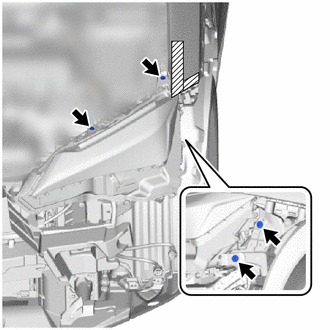

    3. Remove the 2 bolts and 2 screws.
      GTY816750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. for LH Side:

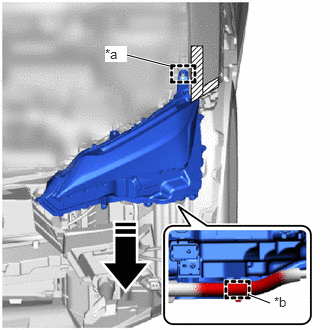

      1. Disengage the hook and clamp to remove the headlight assembly as shown in the illustration.
        GTY786106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a hook
        *b clamp
        Remove in this Direction
    5. for RH Side:

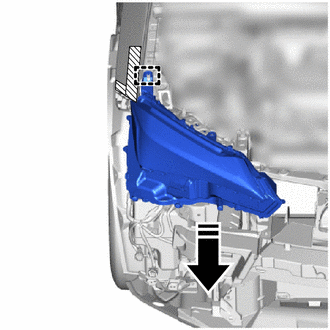

      1. Disengage the hook to remove the headlight assembly as shown in the illustration.
        GTY788250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    6. w/o Headlight ECU:
      1. Disconnect each connector.
