Reassembly [10/2018 - ]: Procedure

  1. INSTALL NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (w/ Headlight ECU)

    See step  2

  2. INSTALL FRONT TURN SIGNAL LIGHT BULB
    1. Install the front turn signal light bulb as shown in the illustration.
      GTY795967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the front turn signal light socket and wire sub-assembly with the front turn signal light bulb as shown in the illustration.

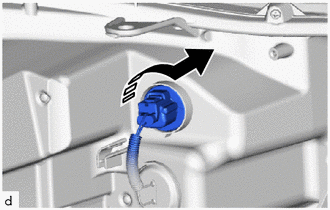

      GTY831239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
