Disassembly [10/2018 - ]: Procedure

  1. REMOVE FRONT TURN SIGNAL LIGHT BULB

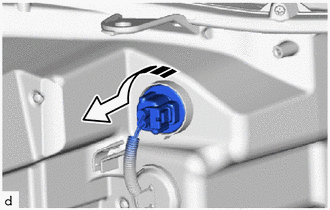

    1. Disconnect the front turn signal light socket and wire sub-assembly with the front turn signal light bulb as shown in the illustration.
      GTY811060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the front turn signal light bulb as shown in the illustration.
      GTY823638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (w/ Headlight ECU)

    See step  3
