Components [10/2018 - ]

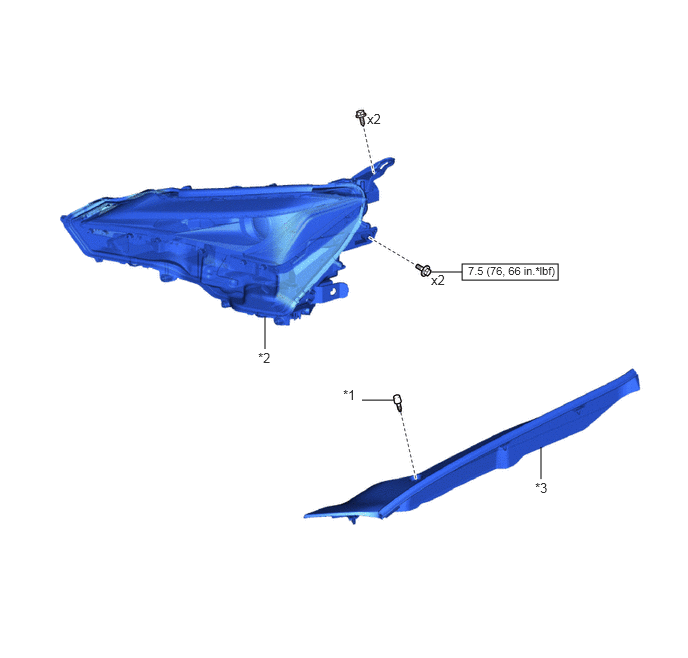

Fig 1: Headlight Assembly (For Single Beam Headlight) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER HOOD CUSHION	*2	HEADLIGHT ASSEMBLY
*3	FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

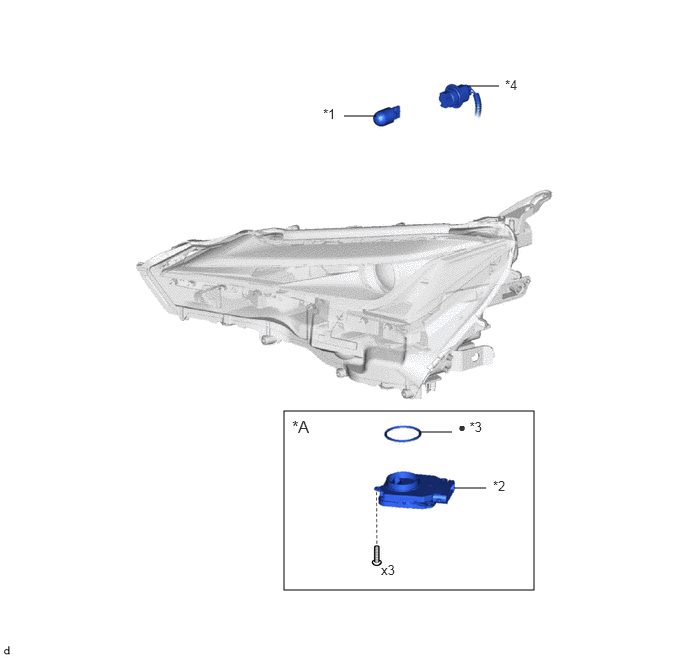

Fig 2: Headlight Assembly (For Single Beam Headlight) Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Headlight ECU	-	-
*1	FRONT TURN SIGNAL LIGHT BULB	*2	NO. 1 HEADLIGHT ECU SUB-ASSEMBLY
*3	HEADLIGHT GASKET	*4	FRONT TURN SIGNAL LIGHT SOCKET AND WIRE SUB-ASSEMBLY
•	Non-reusable part	-	-

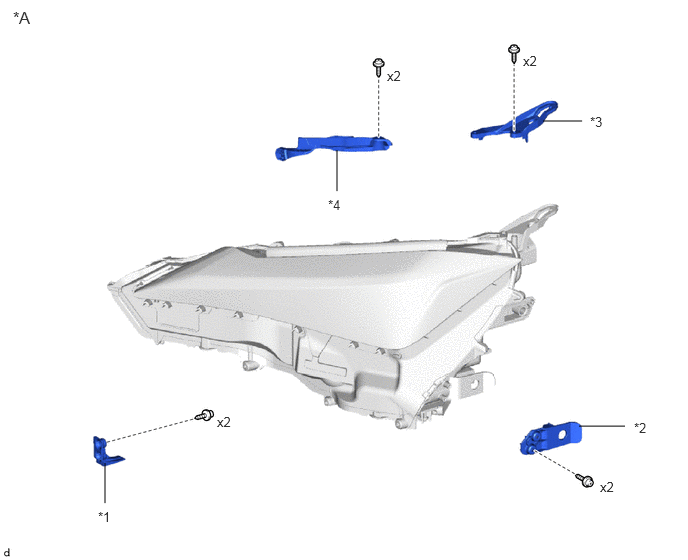

Fig 3: Headlight Assembly (For Triple Beam Headlight) Replacement Components (3 Of 3)

*A	Bracket for Repair	-	-
*1	LOWER HEADLIGHT PROTECTOR RETAINER LH	*2	LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER LH
*3	UPPER HEADLIGHT PROTECTOR RETAINER LH	*4	UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER LH
