System Diagram [07/2022 - ]

HEADLIGHT (w/ Automatic Headlight Beam Level Control System)

Fig 1: Headlight (w/ Automatic Headlight Beam Level Control System) Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Headlight (w/ Automatic Headlight Beam Level Control System) Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Headlight (w/ Automatic Headlight Beam Level Control System) Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT (w/o Automatic Headlight Beam Level Control System)

Fig 4: Headlight (w/o Automatic Headlight Beam Level Control System) Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Headlight (w/o Automatic Headlight Beam Level Control System) Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Headlight (w/o Automatic Headlight Beam Level Control System) Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CORNERING LIGHT (w/ Cornering Light)

Fig 7: Cornering Light (w/ Cornering Light) System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FRONT FOG LIGHT (w/ Fog Light)

Fig 8: Front Fog Light (w/ Fog Light) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TURN SIGNAL LIGHT, HAZARD WARNING LIGHT

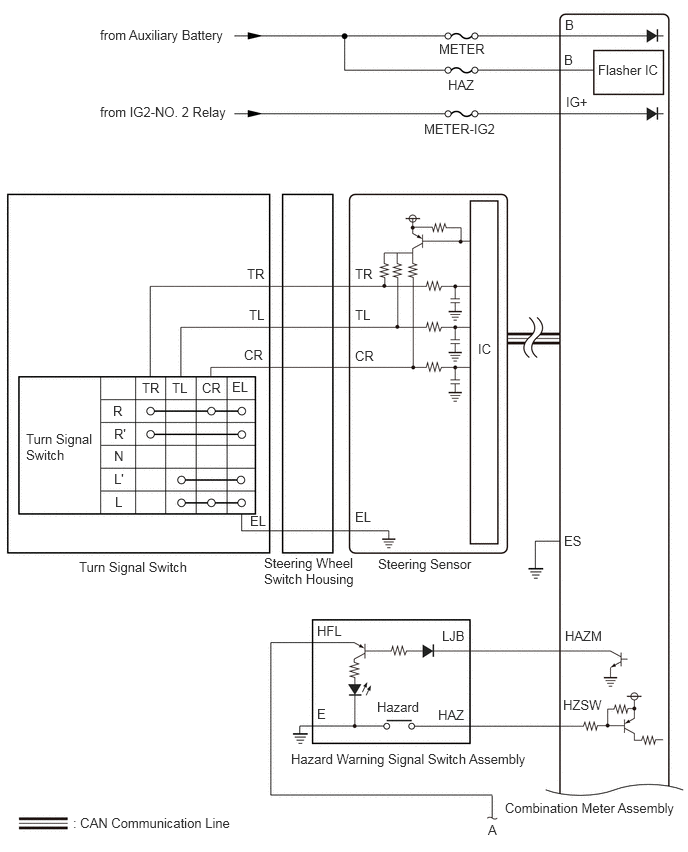

Fig 9: Turn Signal Light, Hazard Warning Light Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Turn Signal Light, Hazard Warning Light Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Turn Signal Light, Hazard Warning Light Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Turn Signal Light, Hazard Warning Light Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TAILLIGHT, LICENSE PLATE LIGHT

Fig 13: Taillight, License Plate Light Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BACK-UP LIGHT

Fig 14: Back-up Light Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STOP LIGHT

Fig 15: Stop Light Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TURN SIGNAL SWITCH

Fig 16: Turn Signal Switch Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Turn Signal Switch Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OUTSIDE HANDLE LIGHTS (w/ Foot Light)

Fig 18: Outside Handle Lights (w/ Foot Light) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT ASSEMBLY CIRCUIT (for Triple Beam Headlight)

Fig 19: Headlight Assembly Circuit (for Triple Beam Headlight) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Headlight Assembly Circuit (for Triple Beam Headlight) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT ASSEMBLY CIRCUIT (for Single Beam Headlight)

Fig 21: Headlight Assembly Circuit (For Single Beam Headlight) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
