Parts Location [10/2018 - 07/2022]: Illustration

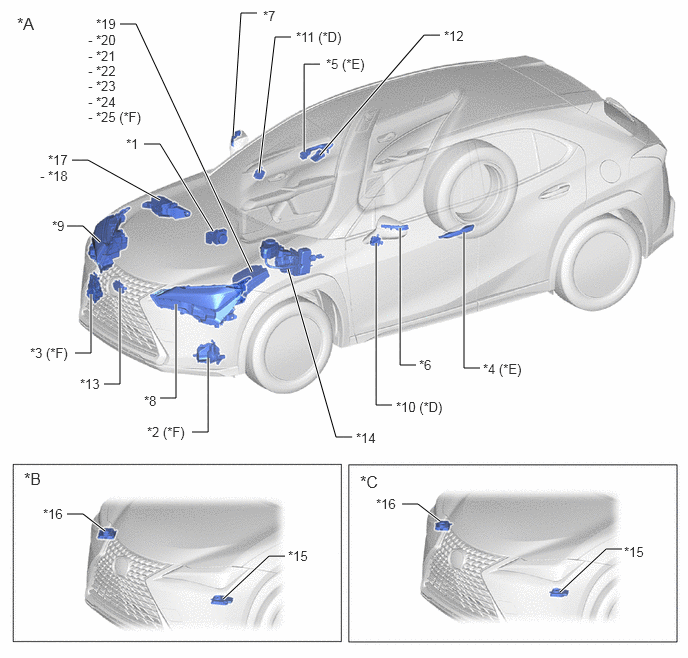

| *A | for HV Model | *B | for Triple Beam Headlight |
| *C | for Single Beam Headlight | *D | w/ Seat Position Memory |
| *E | w/ Foot Light | *F | w/ Front Fog Light |
| *1 | PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | FOG LIGHT ASSEMBLY LH |
| *3 | FOG LIGHT ASSEMBLY RH | *4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH |
| *5 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *8 | HEADLIGHT ASSEMBLY LH |
| *9 | HEADLIGHT ASSEMBLY RH | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY LH |
| *11 | OUTER MIRROR CONTROL ECU ASSEMBLY RH | *12 | FORWARD RECOGNITION CAMERA |
| *13 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *14 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |
| *15 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH | *16 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH |
| *17 | NO. 2 ENGINE ROOM RELAY BLOCK | *18 | H-LP SHADE RELAY |
| *19 | NO. 1 ENGINE ROOM RELAY BLOCK | *20 | NO. 1 INTEGRATION RELAY - H-LP LH RELAY - H-LP RH RELAY - IG1 NO. 3 RELAY (WIP FR RELAY) - P-CON RH RELAY |
| *21 | H-LP LH FUSE | *22 | H-LP RH FUSE |
| *23 | H-LP SHADE FUSE | *24 | DRL FUSE |
| *25 | FOG FR FUSE | - | - |

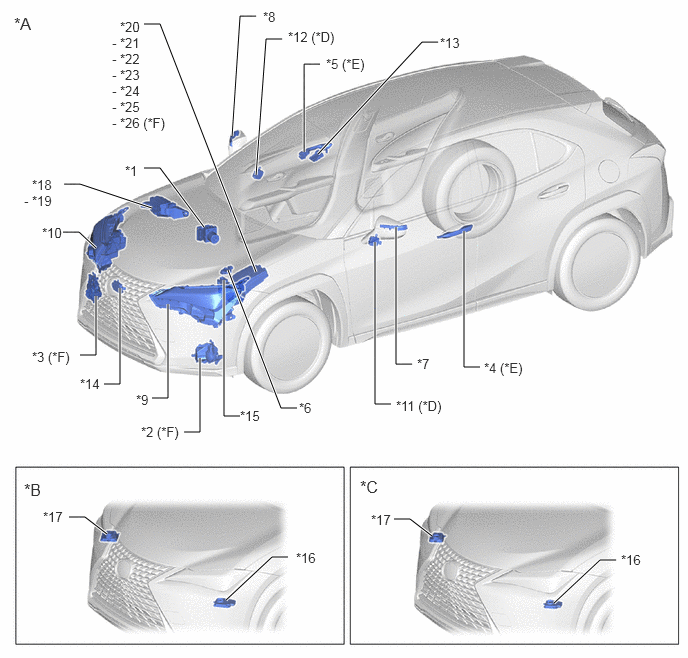

| *A | for Gasoline Model | *B | for Triple Beam Headlight |
| *C | for Single Beam Headlight | *D | w/ Seat Position Memory |
| *E | w/ Foot Light | *F | w/ Front Fog Light |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | FOG LIGHT ASSEMBLY LH |
| *3 | FOG LIGHT ASSEMBLY RH | *4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH |
| *5 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH | *6 | PARK/NEUTRAL POSITION SWITCH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *9 | HEADLIGHT ASSEMBLY LH | *10 | HEADLIGHT ASSEMBLY RH |
| *11 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *12 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *13 | FORWARD RECOGNITION CAMERA | *14 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *15 | ECM | *16 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH |
| *17 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH | *18 | NO. 2 ENGINE ROOM RELAY BLOCK |
| *19 | H-LP SHADE RELAY | *20 | NO. 1 ENGINE ROOM RELAY BLOCK |
| *21 | NO. 1 INTEGRATION RELAY - H-LP LH RELAY - H-LP RH RELAY - IG1 NO. 3 RELAY (WIP FR RELAY) - P-CON RH RELAY |
*22 | H-LP LH FUSE |
| *23 | H-LP RH FUSE | *24 | H-LP SHADE FUSE |
| *25 | DRL FUSE | *26 | FOG FR FUSE |

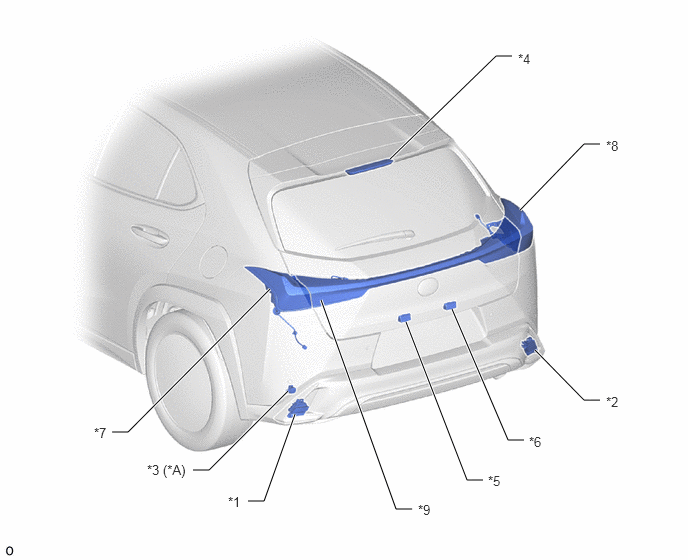

| *A | w/ Automatic Headlight Beam Level Control System | - | - |
| *1 | BACK-UP LIGHT LED LH | *2 | BACK-UP LIGHT LED RH |
| *3 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH | *4 | CENTER STOP LIGHT ASSEMBLY |
| *5 | LICENSE PLATE LIGHT ASSEMBLY LH | *6 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *7 | REAR COMBINATION LIGHT ASSEMBLY LH | *8 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *9 | REAR LIGHT ASSEMBLY | - | - |

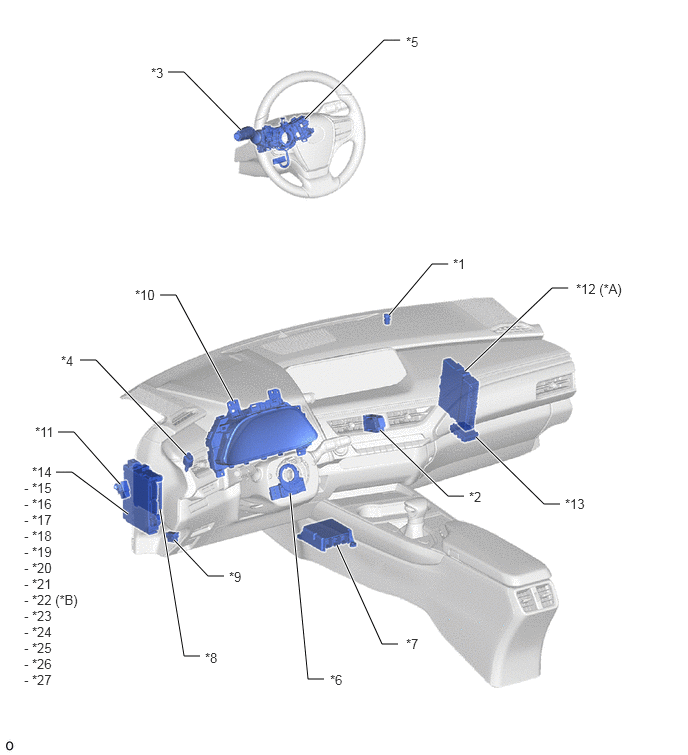

| *A | for HV Model | *B | for Gasoline Model |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | TURN SIGNAL SWITCH | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | STEERING WHEEL SWITCH HOUSING | *6 | STEERING SENSOR |
| *7 | AIRBAG ECU ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | *10 | COMBINATION METER ASSEMBLY |
| *11 | STOP LIGHT CONTROL ECU ASSEMBLY | *12 | HYBRID VEHICLE CONTROL ECU |
| *13 | NETWORK GATEWAY ECU | *14 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *15 | TAIL RELAY | *16 | BKUP LP RELAY |
| *17 | ACC RELAY | *18 | HAZ FUSE |
| *19 | IG1-NO. 1 RELAY | *20 | TAIL FUSE |
| *21 | BKUP LP FUSE | *22 | ECU-DCC NO. 2 FUSE |
| *23 | ECU-IG1 NO. 4 FUSE | *24 | ECU-ACC FUSE |
| *25 | STOP FUSE | *26 | METER FUSE |
| *27 | METER-IG2 FUSE | - | - |
