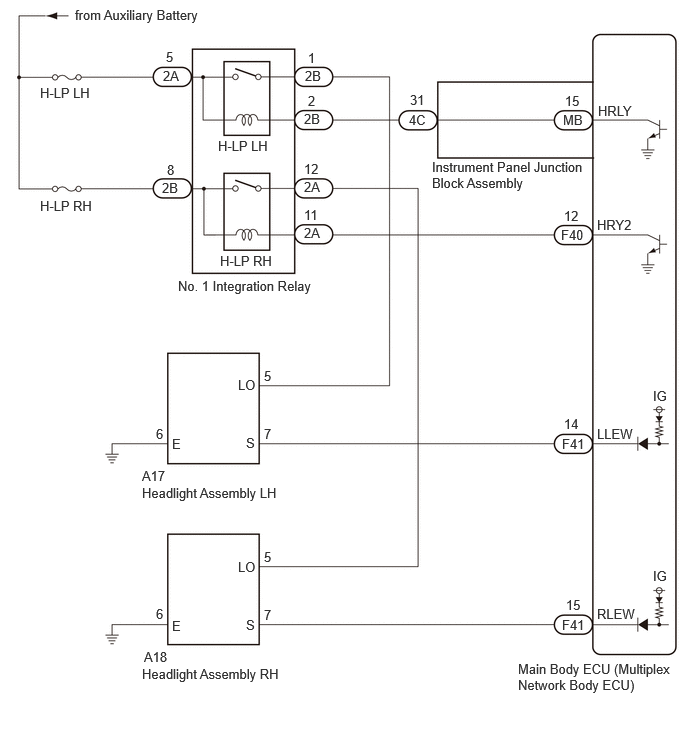

DTC B2430: LED Headlight LH; DTC B2431: LED Headlight RH [07/2022 - ]: Wiring Diagram

GTY1135237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
