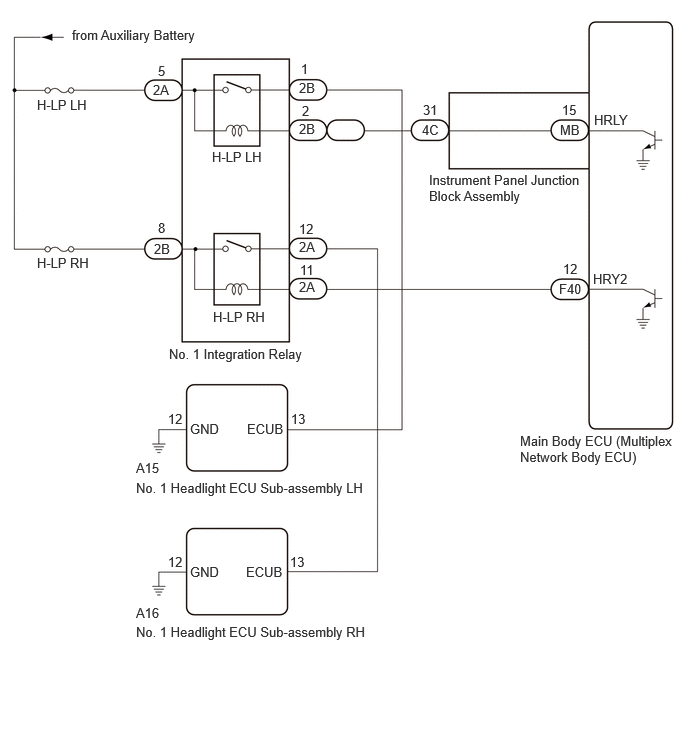

DTC B242F: Open in B Power Line [07/2022 - ]: Wiring Diagram

GTY1137547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
