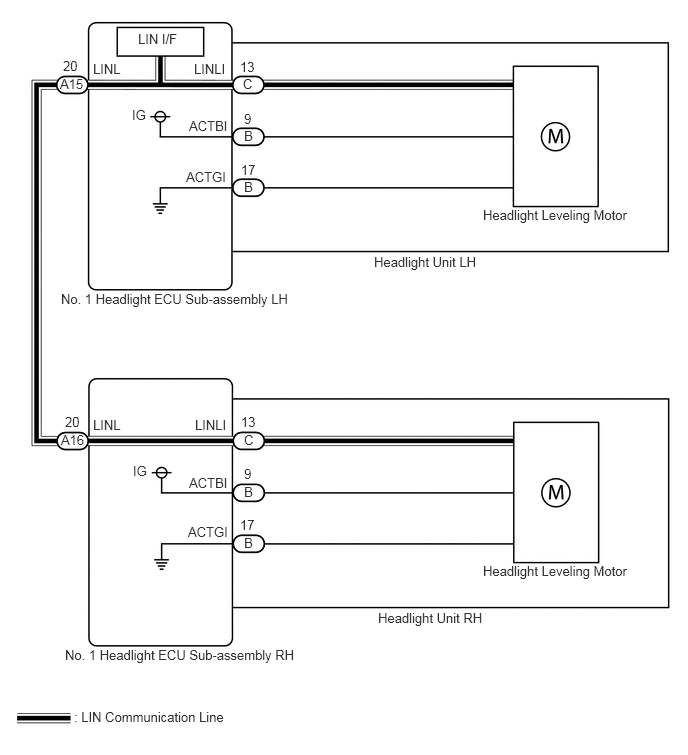

DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [10/2018 - ]: Wiring Diagram

GTY807811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
