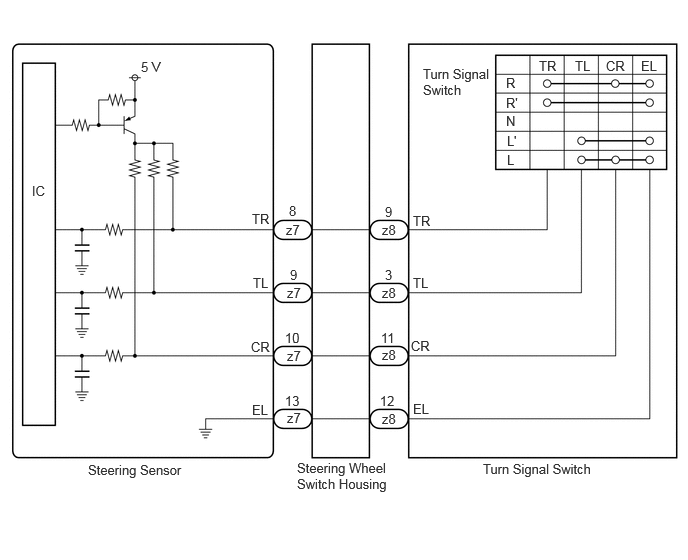

Turn Signal Switch Circuit [10/2018 - ]: Wiring Diagram

GTY831910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
