High Beam Headlight Circuit [10/2018 - 07/2022]: Wiring Diagram

w/ Automatic Headlight Beam Level Control System

GTY793007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

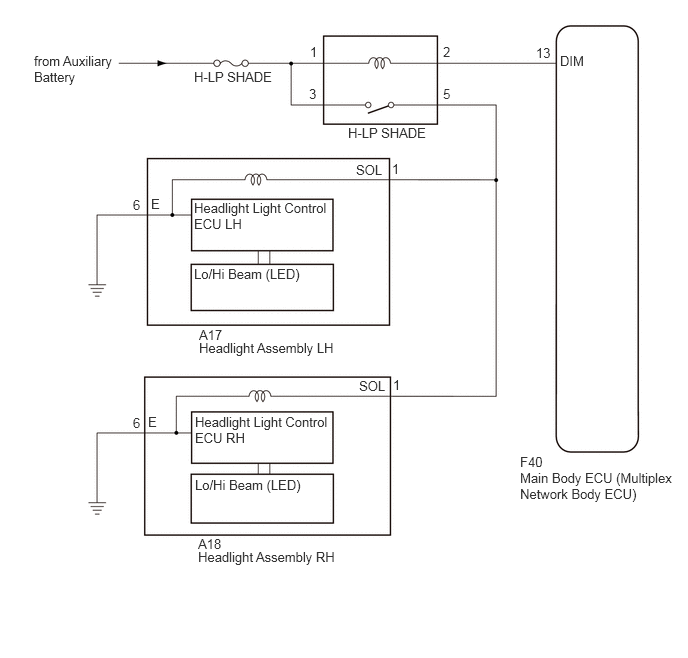

w/o Automatic Headlight Beam Level Control System

GTY833995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
