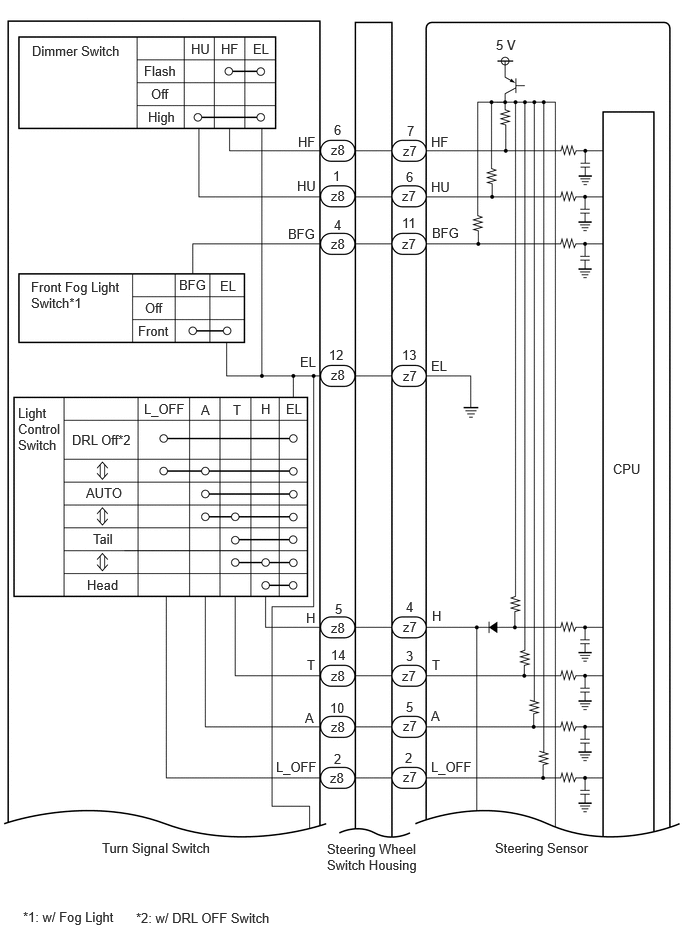

Headlight Dimmer Switch Circuit [10/2020 - 07/2022]: Wiring Diagram

GTY970439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY807246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
