Headlight Dimmer Switch Circuit [10/2019 - 10/2020]: Wiring Diagram

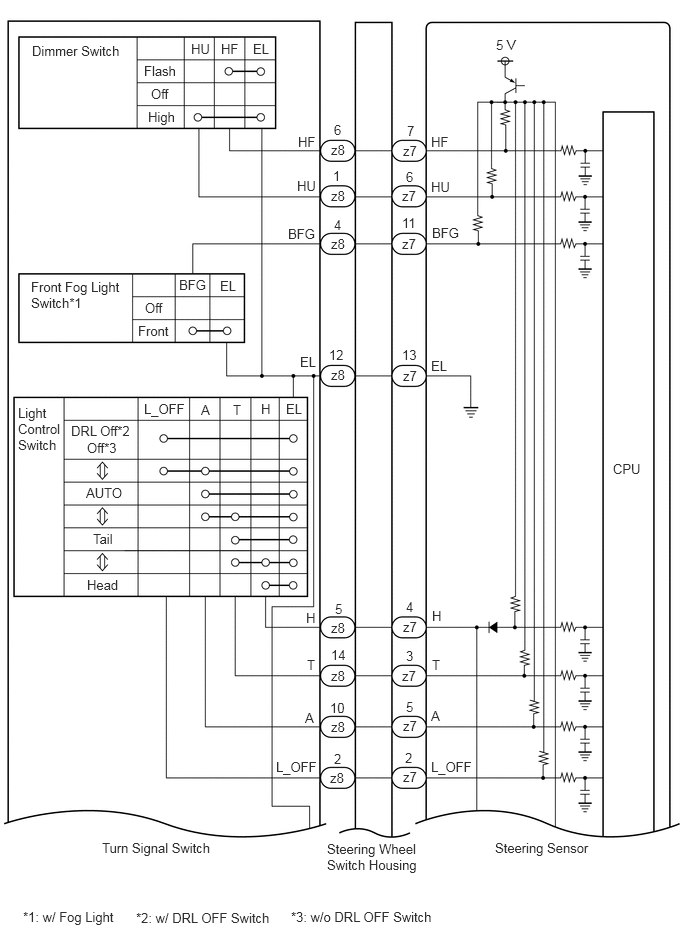

GTY780869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

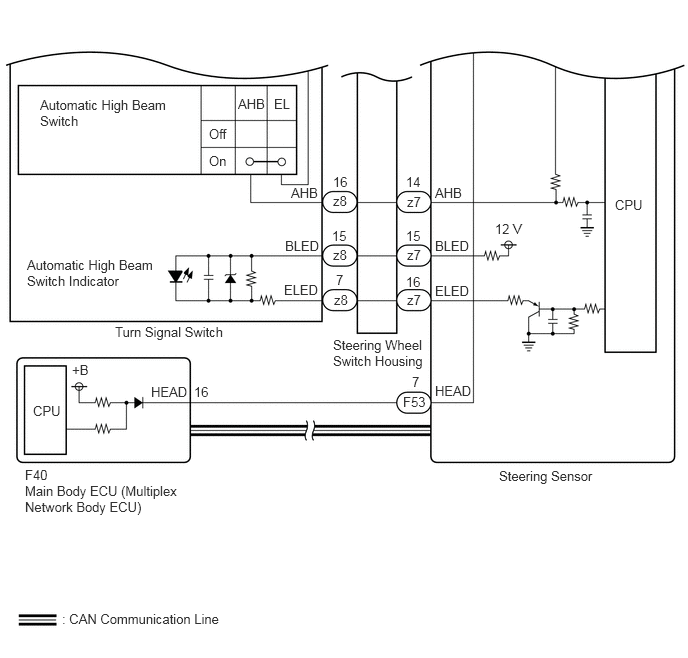

GTY807246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
