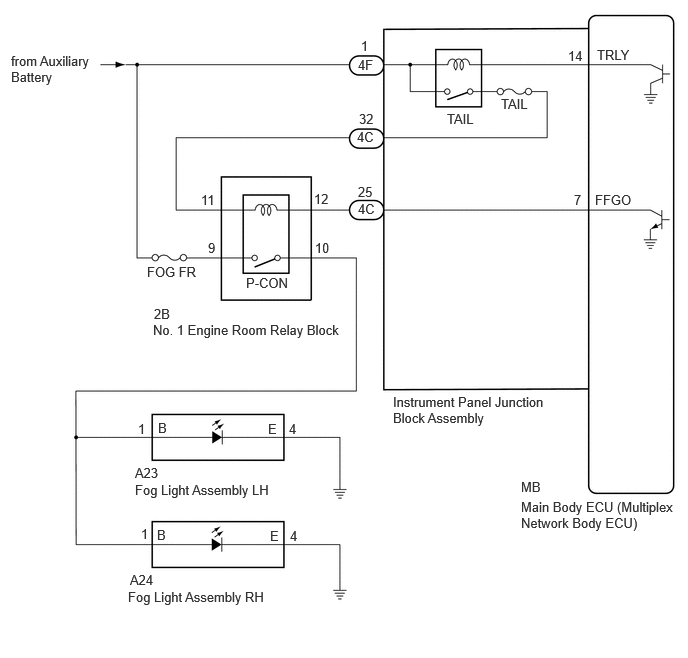

Front Fog Light Circuit [07/2022 - ]: Wiring Diagram

GTY1128273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
