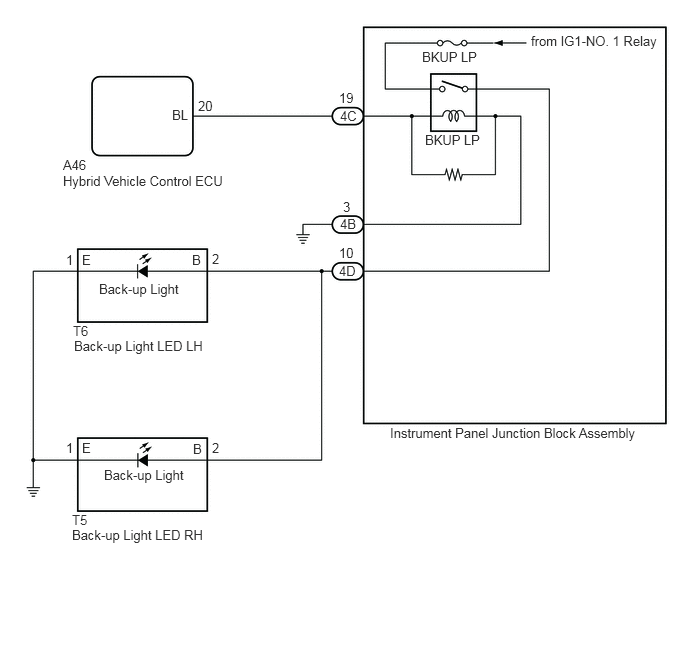

Back-up Light Circuit [10/2018 - ]: Wiring Diagram

GTY796447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
