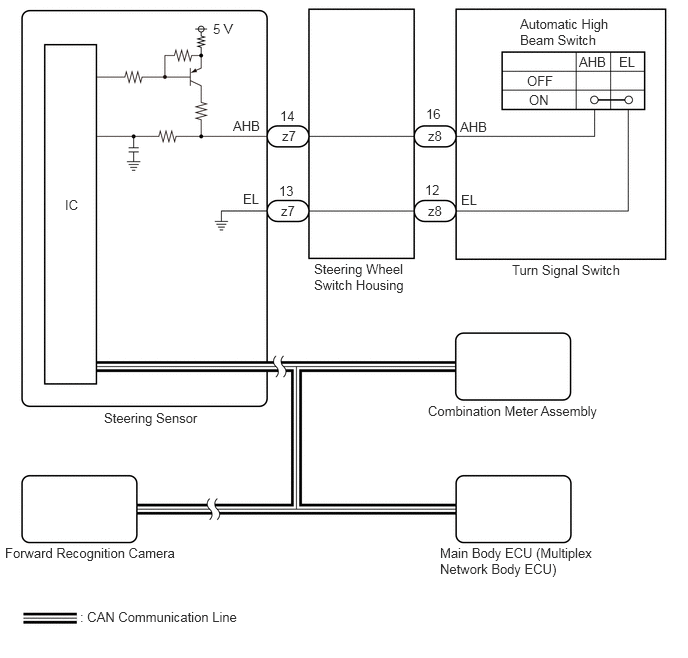

Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [10/2018 - 07/2022]: Wiring Diagram

GTY808368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
