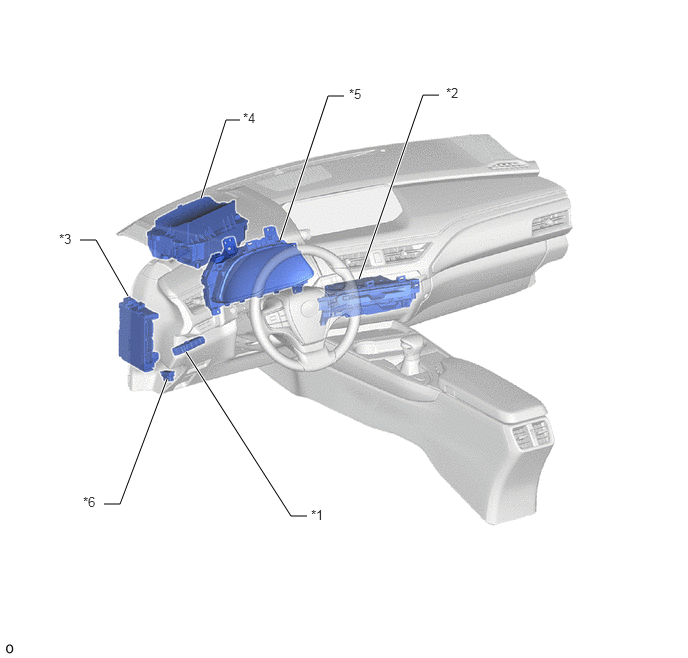

Parts Location [10/2018 - 07/2022]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADUP DISPLAY SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY)	*2	RADIO RECEIVER ASSEMBLY
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 2 FUSE	*4	METER MIRROR SUB-ASSEMBLY
*5	COMBINATION METER ASSEMBLY	*6	DLC3
