Parts Location [10/2018 - 07/2022]: Illustration

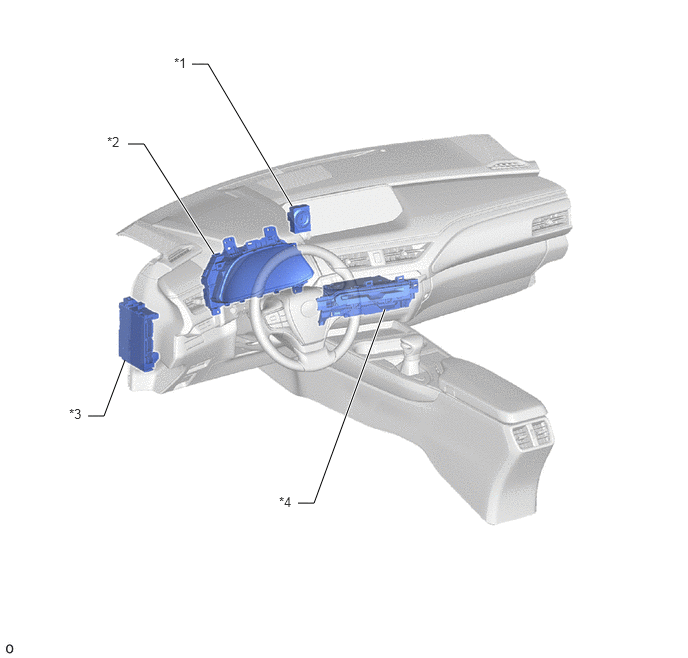

GTY791320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLOCK ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-DCC NO. 2 FUSE
- ECU-ACC FUSE
- PANEL FUSE		 *4 RADIO RECEIVER ASSEMBLY
