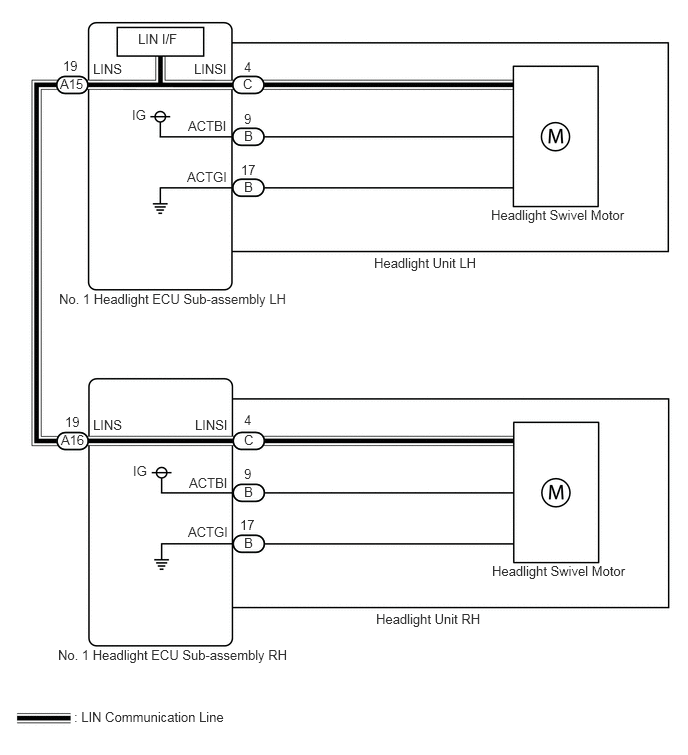

DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication [10/2018 - ]: Wiring Diagram

GTY807810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
