DTC B15C3-71: Speaker Output Short Actuator Stuck [07/2022 - ]: Wiring Diagram

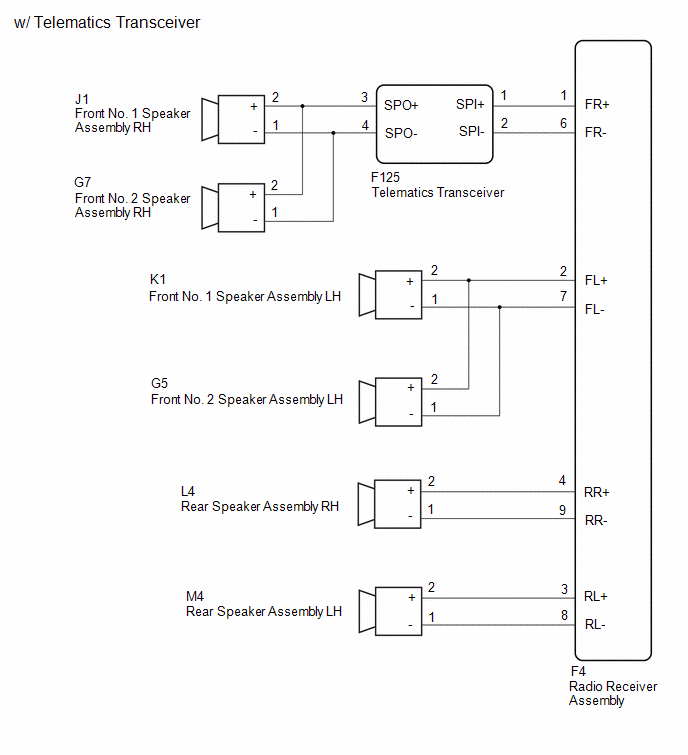

GTY1137797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

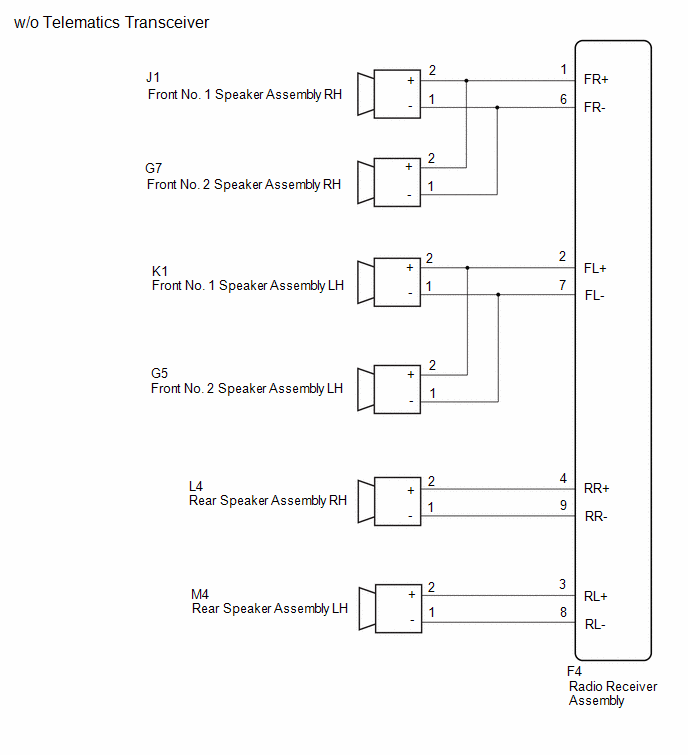

GTY1136185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
