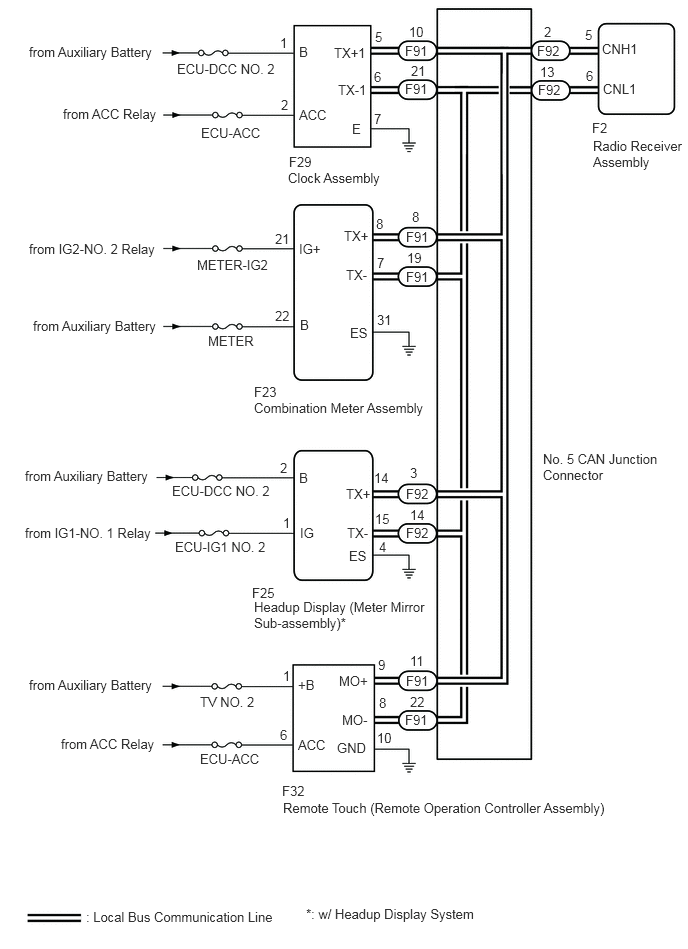

DTC B1323: Lost Communication with Haptic Device; DTC B1324: Lost Communication with Meter; DTC B1325: Lost Communication with HUD; DTC B1326: Lost Communication with Clock Device (Local-CAN) [10/2018 - 10/2019]: Wiring Diagram

GTY811397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
