DTC U11D0-87: Lost Local Communication with MET Missing Message; DTC U11D187: Lost Local Communication with HUD Missing Message; DTC U11D387: Lost Local Communication with Qi Missing Message [07/2022 - ]: Wiring Diagram

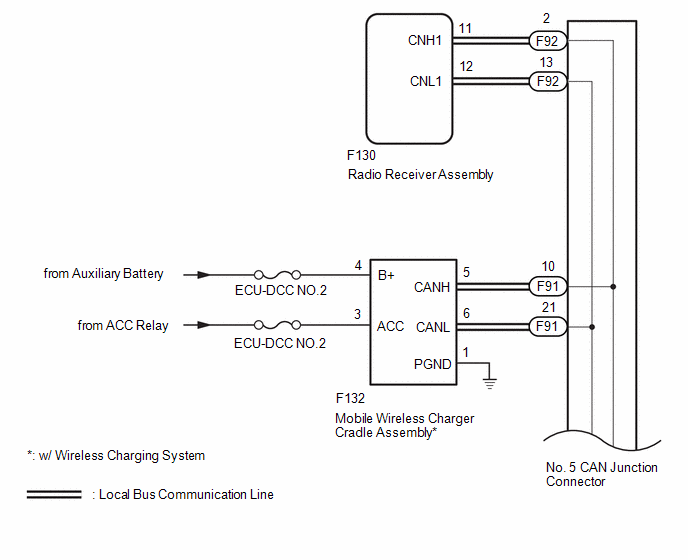

GTY1137050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

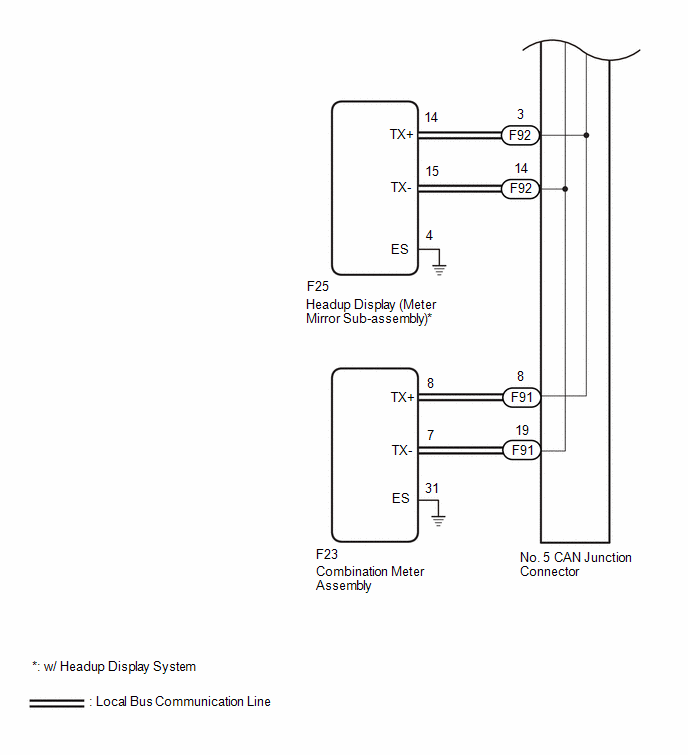

GTY1137589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
