Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter [10/2018 - 07/2022]: Wiring Diagram

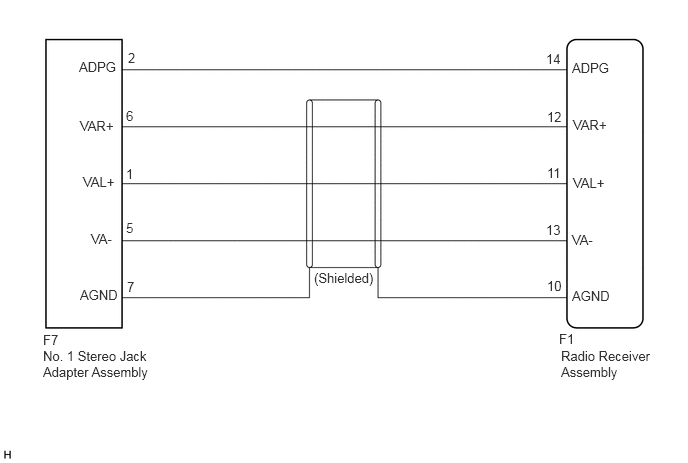

GTY790717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
