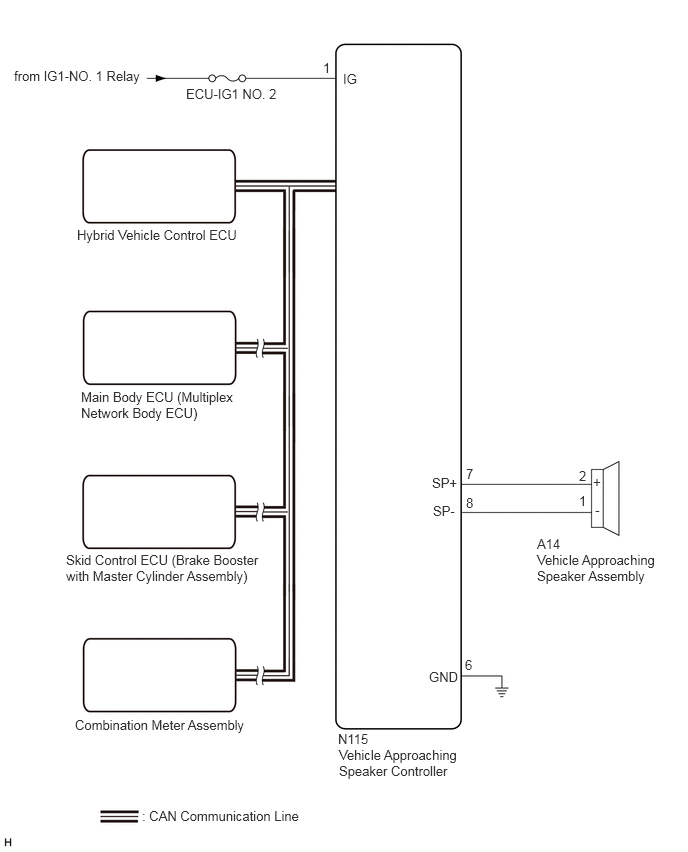

There is No Sound Made [08/2021 - 07/2022]: Wiring Diagram

GTY970176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
