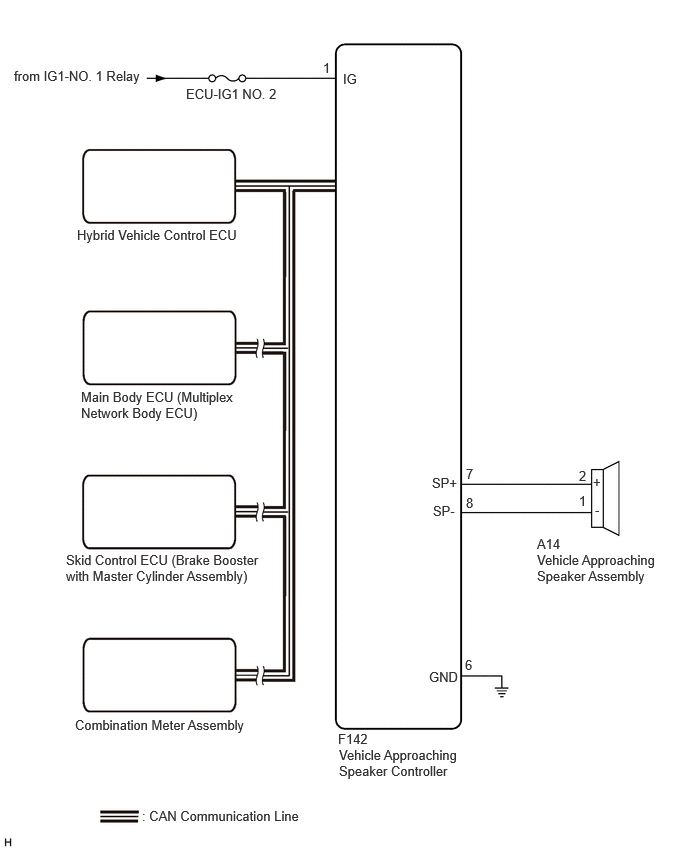

There is No Sound Made [07/2022 - ]: Wiring Diagram

GTY1137089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
