Parts Location [10/2018 - ]: Illustration

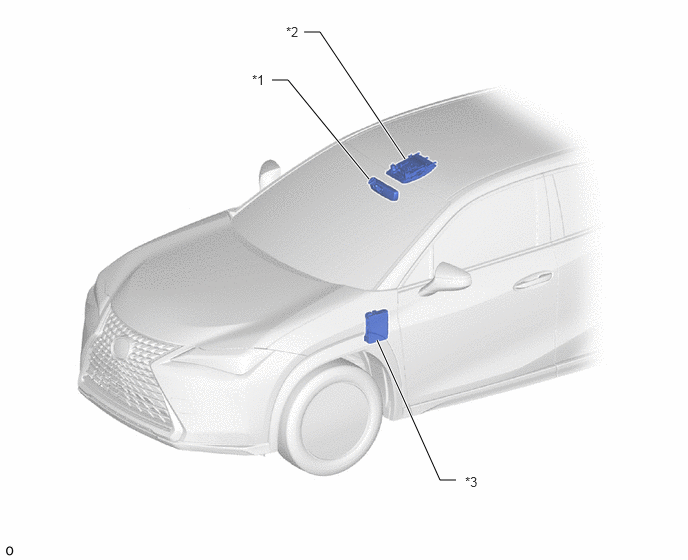

GTY821630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INNER REAR VIEW MIRROR ASSEMBLY
- GARAGE DOOR OPENER		 *2 MAP LIGHT ASSEMBLY
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-DCC NO. 2 FUSE		 - -
