Components [08/2016 - ]

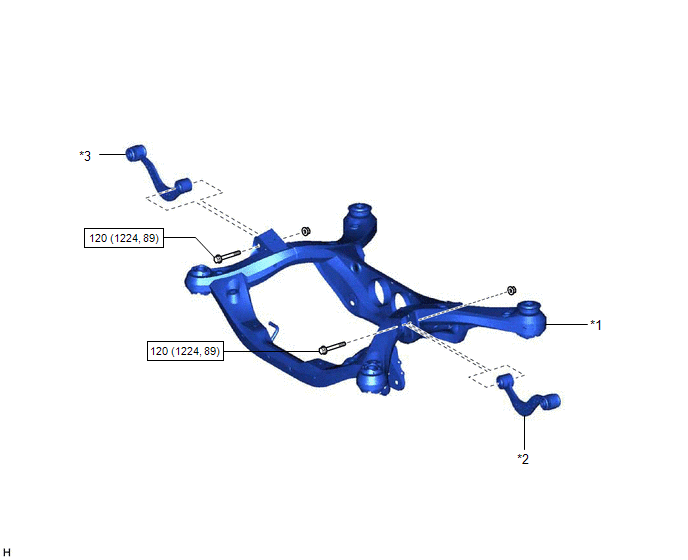

Fig 1: Rear Upper Arm Replacement Components With Torque Specification [08/2016 - ]
GTY615096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SUSPENSION MEMBER SUB-ASSEMBLY *2 REAR UPPER CONTROL ARM ASSEMBLY LH
*3 REAR UPPER CONTROL ARM ASSEMBLY RH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
