Removal [10/2015 - 08/2016]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [10/2015 - 03/2018]

  3. REMOVE REAR SUSPENSION ARM COVER LH

    See step  3

  4. REMOVE REAR SUSPENSION ARM COVER RH

    HINT:

    Perform the same procedure as for the LH side.

  5. SEPARATE REAR FLEXIBLE HOSE LH
    1. Remove the bolt and separate the rear flexible hose LH from the rear upper control arm assembly LH.
      GTY620193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SEPARATE REAR FLEXIBLE HOSE RH

    HINT:

    Perform the same procedure as for the LH side.

  7. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    Refer to REMOVAL [10/2015 - 08/2016]

  8. SEPARATE REAR SKID CONTROL SENSOR WIRE LH
    1. Remove the bolt and separate the rear skid control sensor wire LH.
      GTY620575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped with protective tape, disconnect the rear skid control sensor wire LH connector from the rear axle hub and bearing assembly LH.
      NOTE:

      Be careful not to damage the rear axle hub and bearing assembly.

      GTY639224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  9. SEPARATE REAR SKID CONTROL SENSOR WIRE RH

    HINT:

    Perform the same procedure as for the LH side.

  10. REMOVE REAR SKID CONTROL SENSOR WIRE LH
    1. Disconnect the connector.
      GTY620421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, nut and rear skid control sensor wire LH.
  11. REMOVE REAR SKID CONTROL SENSOR WIRE RH
    1. Disconnect the connector and disengage the 2 clamps.
      GTY674235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, nut and rear skid control sensor wire RH.
  12. REMOVE REAR STABILIZER LINK ASSEMBLY LH

    See step  4

  13. REMOVE REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  14. REMOVE REAR STABILIZER BAR

    See step  3

  15. REMOVE REAR COIL SPRING LH

    See step  5

  16. REMOVE REAR COIL SPRING RH

    HINT:

    Perform the same procedure as for the LH side.

  17. REMOVE REAR LOWER COIL SPRING INSULATOR LH

    See step  7

  18. REMOVE REAR LOWER COIL SPRING INSULATOR RH

    HINT:

    Perform the same procedure as for the LH side.

  19. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    See step  7

  20. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  21. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    1. Using a transmission jack and wooden block, support the rear suspension member sub-assembly.
      GTY685297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Transmission Jack
    2. Remove the bolt, nut and rear lower suspension member stopper.
      GTY674227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

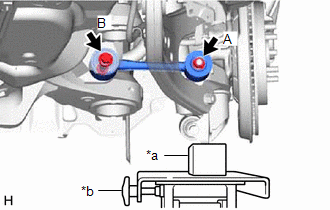

    3. Using a transmission jack and a wooden block, support the rear axle carrier sub-assembly.
      GTY666473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Transmission Jack
    4. Remove the nut (A) and spacer.
    5. Remove the bolt (B), nut and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

    6. Temporarily install the rear lower suspension member stopper with the bolt and nut.
      GTY674227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  23. SEPARATE REAR UPPER CONTROL ARM ASSEMBLY LH
    1. Remove the bolt and nut and separate the rear upper control arm assembly LH from the rear axle carrier sub-assembly LH.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY625119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. SEPARATE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

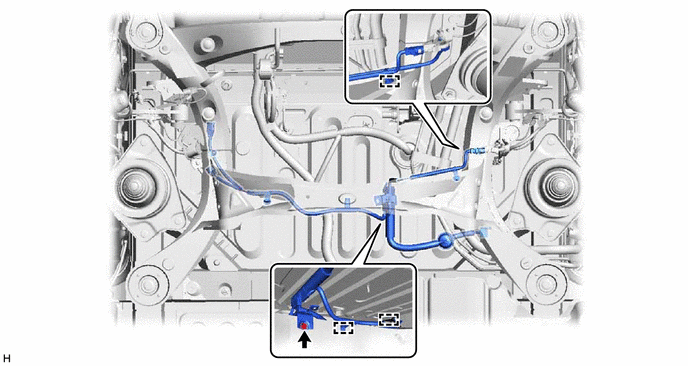

  25. SEPARATE NO. 3 FLOOR WIRE
    1. Remove the bolt and disengage the 3 clamps to separate the No. 3 floor wire from rear suspension member sub-assembly.
      GTY632913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

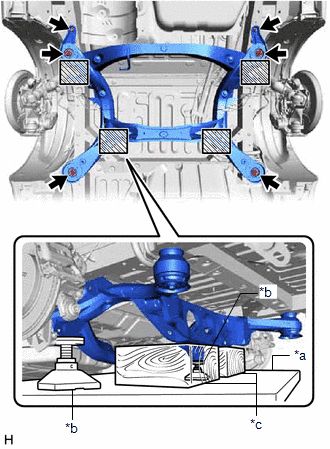

    1. Using an engine lifter, 2 attachments and 2 wooden blocks or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:
      GTY677083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      NOTE:

      Use attachments and wooden blocks to keep the rear suspension member sub-assembly level.

      GTY637530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter
      *b Attachment
      *c Wooden Block
      Attachment and Wooden Block Placement Location
    2. Remove the 4 bolts, 2 nuts, 2 rear lower suspension braces, rear lower suspension member stopper LH and rear lower suspension member stopper RH.
    3. Slowly lower the rear suspension member sub-assembly.
      NOTE:

      When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

  27. REMOVE REAR SUSPENSION MEMBER UPPER STOPPER
    1. Remove the 2 rear suspension member upper stoppers from the rear suspension member sub-assembly.
      GTY620455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR SUSPENSION MEMBER REAR UPPER STOPPER
    1. Remove the 2 rear suspension member rear upper stoppers from the rear suspension member sub-assembly.
      GTY620502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

    See step  2

  30. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  31. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)
    1. Using a chisel and hammer, bend the 2 portions of the rear suspension member front body mounting cushion rib.
      NOTE:

      Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

      GTY657131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bend Portion
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      GTY684820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the rear suspension member front body mounting cushion while applying grease into the clearance between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:
      • Set the claws of SST onto the rear suspension member sub-assembly securely as shown in the illustration.
      • Be careful as the rear suspension member front body mounting cushion may fly out.
      • The rear suspension member front body mounting cushion cannot be reused.
      GTY624662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST and the rear suspension member front body mounting cushion (LH Side) from the rear suspension member sub-assembly.
  32. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)

    HINT:

    Perform the same procedure as for the LH side.

  33. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
    1. Using a chisel and hammer, bend the 2 portions of the rear suspension member rear body mount cushion LH rib.
      NOTE:

      Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

      GTY639959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bend Portion
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      GTY643234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the rear suspension member rear body mount cushion LH while applying grease into the clearance between the rear suspension member rear body mount cushion LH and the rear suspension member sub-assembly.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:
      • Set the claws of SST onto the rear suspension member sub-assembly securely as shown in the illustration.
      • Be careful as the rear suspension member rear body mount cushion LH may fly out.
      • The rear suspension member rear body mount cushion LH cannot be reused.
      GTY670287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST and the rear suspension member rear body mount cushion LH from the rear suspension member sub-assembly.
  34. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  35. REMOVE BOLT
    1. Remove the 2 bolts from the rear suspension member sub-assembly.
      GTY620504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE HOLE PLUG
    1. Remove the 12 hole plugs from the rear suspension member sub-assembly as shown in the illustration.
      GTY620503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
