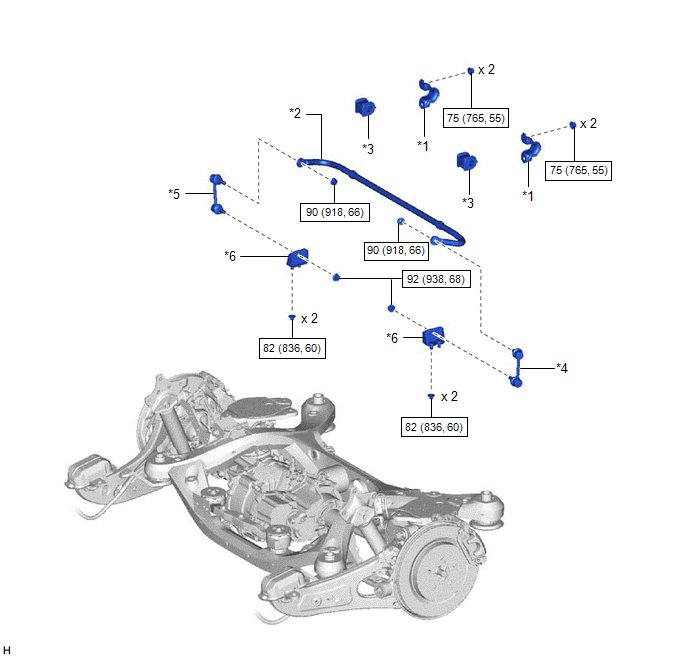

Components [10/2015 - 03/2018]
| Callout | Description | Callout | Description |
| *1 | REAR NO. 1 STABILIZER BAR BRACKET | *2 | REAR STABILIZER BAR |
| *3 | REAR STABILIZER BUSHING | *4 | REAR STABILIZER LINK ASSEMBLY LH |
| *5 | REAR STABILIZER LINK ASSEMBLY RH | *6 | REAR LOWER STABILIZER BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
