Installation [08/2016 - 03/2018]: Procedure
- TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY (w/o AVS)
- Temporarily install the rear shock absorber assembly with the 2 bolts and nut.
*a Protector NOTE:- Ensure that the protector faces the front of the vehicle.
- Insert the bolt with the threaded end facing the rear of the vehicle.
- Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
- Temporarily install the rear shock absorber assembly with the 2 bolts and nut.
- TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY (w/ AVS)
- Temporarily install the rear shock absorber assembly with the 2 bolts and nut.
*a Protector NOTE:- Ensure that the protector faces the front of the vehicle.
- Insert the bolt with the threaded end facing the rear of the vehicle.
- Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
- Temporarily install the rear shock absorber assembly with the 2 bolts and nut.
- INSTALL REAR SKID CONTROL SENSOR WIRE LH (w/ AVS)
- Install the rear skid control sensor wire LH with the bolt and 4 nuts.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
- Connect the 3 connectors.
- Install the rear skid control sensor wire LH with the bolt and 4 nuts.
- INSTALL REAR SKID CONTROL SENSOR WIRE RH (w/ AVS)
- Install the rear skid control sensor wire RH with the bolt and 4 nuts.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
- Connect the 3 connectors and engage the 3 clamps.
- Install the rear skid control sensor wire RH with the bolt and 4 nuts.
- STABILIZE SUSPENSION

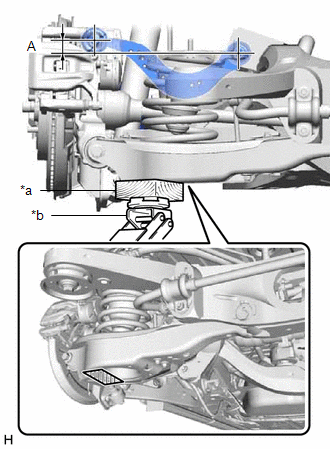

- Using a jack and a wooden block, apply load to the suspension so that the rear upper control arm assembly is positioned as shown in the illustration.
Standard Length (A)
w/o AVS 9.9 mm (0.39 in.) w/ AVS 24.3 mm (0.957 in.) WARNING:Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.
NOTE:- When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
- Make sure to perform this operation with the vehicle kept as low as possible.
*a Wooden Block *b Jack Wooden Block Placement Location
- Using a jack and a wooden block, apply load to the suspension so that the rear upper control arm assembly is positioned as shown in the illustration.
- INSTALL REAR SHOCK ABSORBER ASSEMBLY
- INSTALL REAR SUSPENSION ARM COVER
See step 8
- INSTALL REAR WHEEL
Refer to PROCEDURE - Step 1
- PERFORM INITIALIZATION
- Intelligent clearance sonar system
- Intuitive parking assist system (w/ Intelligent Clearance Sonar System)
Refer to CALIBRATION [08/2016 - 03/2018] Parking assist monitor system for Initialization: Refer to INITIALIZATION [10/2015 - 08/2019]
for Calibration: Refer to CALIBRATION [10/2015 - 03/2018]Panoramic view monitor system for Initialization: Refer to INITIALIZATION [10/2015 - 08/2019]
for Calibration: Refer to CALIBRATION [10/2015 - 03/2018]- Automatic headlight beam level control system
- AFS (Adaptive front-lighting system)
Refer to INITIALIZATION [10/2015 - 08/2019]
