Installation [08/2016 - 08/2019]: Procedure

1. Install the rear upper coil spring insulator to the vehicle.

1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

1. Set the rear coil spring to the rear No. 2 suspension arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark

   NOTE:

   Set the rear coil spring so that the identification mark is positioned as shown in the illustration.

2. Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

   Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

   WARNING:

   Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.
   • Insert the bolt with the threaded end facing the front of the vehicle.

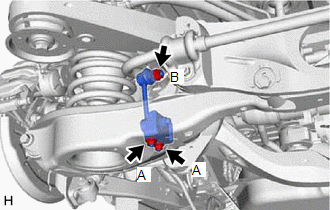

1. Install the rear stabilizer link assembly to the rear stabilizer bar with the nut (B).

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the rear stabilizer link assembly to the rear No. 2 suspension arm assembly with the 2 nuts (A).

   Torque: 82 N*m (836 kgf*cm, 60 ft.*lbf)

See step  8

Refer to INSTALLATION [10/2015 - 03/2018] , or refer to INSTALLATION [03/2018 - ]

Refer to PROCEDURE - Step 1

See step  11

Refer to ADJUSTMENT [08/2016 - 03/2018] , or refer to ADJUSTMENT [03/2018 - ]
