Removal [08/2019 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DECK FLOOR BOX (for LH Side)

    Refer to PROCEDURE - Step 6

  7. REMOVE DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 11

  10. REMOVE REAR SEAT ASSEMBLY LH (for LH Side)

    Refer to REMOVAL [08/2019 - ]

  11. REMOVE REAR SEAT ASSEMBLY RH (for RH Side)

    Refer to REMOVAL [08/2019 - ]

  12. REMOVE UPPER QUARTER TRIM PAD LH

    Refer to PROCEDURE - Step 23

  13. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 24

  14. REMOVE REAR FLOOR FINISH SIDE PLATE LH

    Refer to PROCEDURE - Step 25

  15. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

    Refer to PROCEDURE - Step 26

  16. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    Refer to PROCEDURE - Step 34

  17. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 27

  18. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1

  19. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 2

  20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 29

  21. REMOVE RECLINING REMOTE CONTROL BEZEL RH (w/o Rear Power Seat System)

    for RH Side:

    Refer to PROCEDURE - Step 37

  22. REMOVE FOLD SEAT SWITCH ASSEMBLY (w/ Rear Power Seat System)

    for RH Side:

    Refer to PROCEDURE - Step 5

  23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 39

  24. REMOVE REAR LIGHT COVER (for Bulb Type Turn Signal Light)
    1. Using a molding remover, disengage the 3 claws as shown in the illustration.
      GTY611718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Molding Remover Here
      Remove in this Direction
    2. Disengage the 3 claws and guide to remove the rear light cover as shown in the illustration.
      GTY826696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  25. REMOVE REAR LIGHT COVER (for LED Type Turn Signal Light)

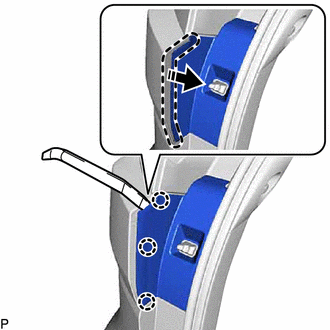

    1. Using a molding remover, disengage the 3 claws as shown in the illustration.
      GTY961502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Molding Remover Here
      Remove in this Direction

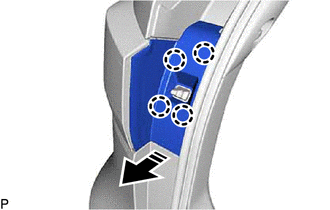

    2. Disengage the 4 claws to remove the rear light cover as shown in the illustration.
      GTY961322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  26. REMOVE REAR COMBINATION LIGHT ASSEMBLY

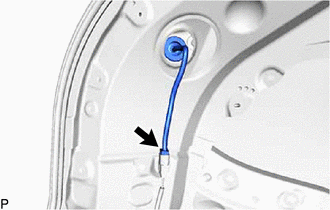

    1. Disconnect the connector.
      GTY961440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

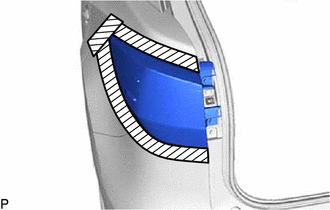

    2. Apply protective tape around the rear combination light assembly as shown in the illustration.
      GTY960580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

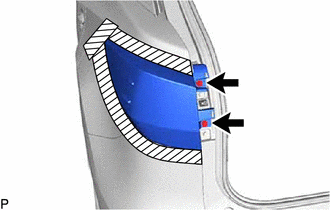

    3. Remove the 2 screws.
      GTY960510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

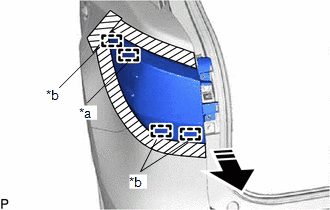

    4. Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light assembly.
      NOTE:

      To prevent the rear combination light assembly from falling when disengaging the pin, lightly hold the rear combination light assembly.

      GTY960712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
      Remove in this Direction

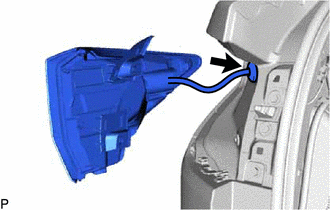

    5. Disengage the grommet to remove the rear combination light assembly.
      GTY961280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
