Parts Location [12/2017 - 03/2018]: Illustration
| *A | w/ Adaptive Variable Suspension System | - | - |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | ECM ASSEMBLY | *4 | ABSORBER CONTROL ECU |

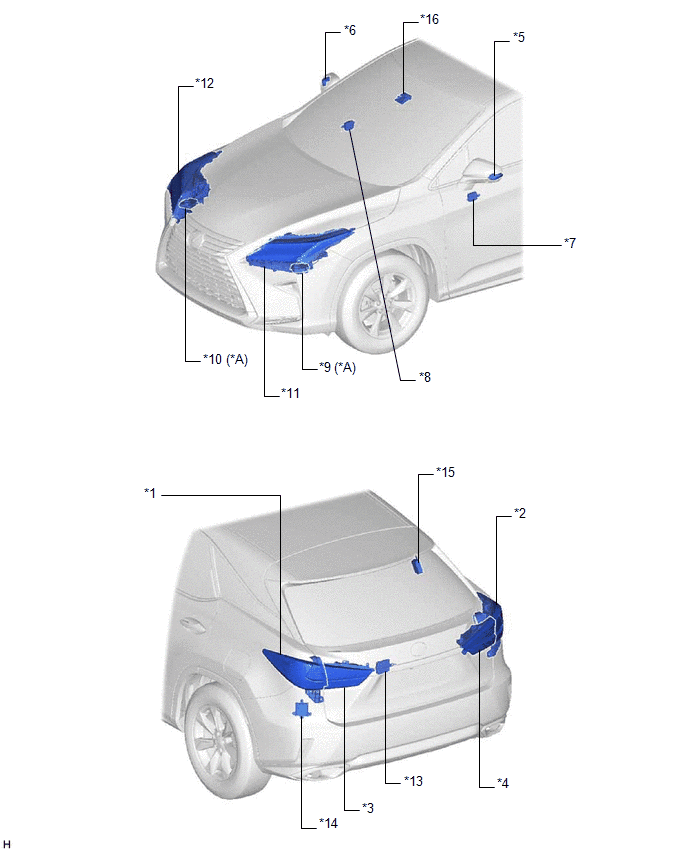

| *A | w/ Automatic Headlight Beam Level Control System | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | REAR LIGHT ASSEMBLY LH | *4 | REAR LIGHT ASSEMBLY RH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *8 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *9 | HEADLIGHT ECU SUB-ASSEMBLY LH | *10 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *11 | HEADLIGHT ASSEMBLY LH | *12 | HEADLIGHT ASSEMBLY RH |
| *13 | MULTIPLEX NETWORK DOOR ECU | *14 | BLIND SPOT MONITOR SENSOR LH |
| *15 | TIRE PRESSURE WARNING ECU AND RECEIVER | *16 | FORWARD RECOGNITION CAMERA |

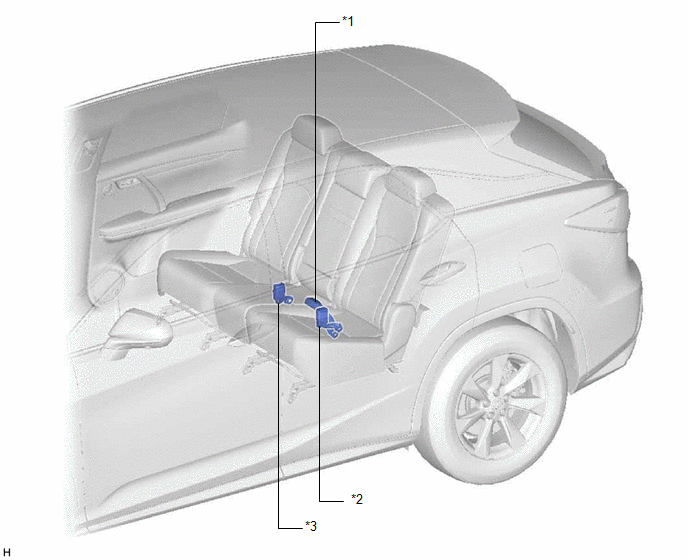

| *1 | REAR CENTER SEAT INNER BELT ASSEMBLY | *2 | REAR SEAT INNER BELT ASSEMBLY LH |
| *3 | REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH | - | - |

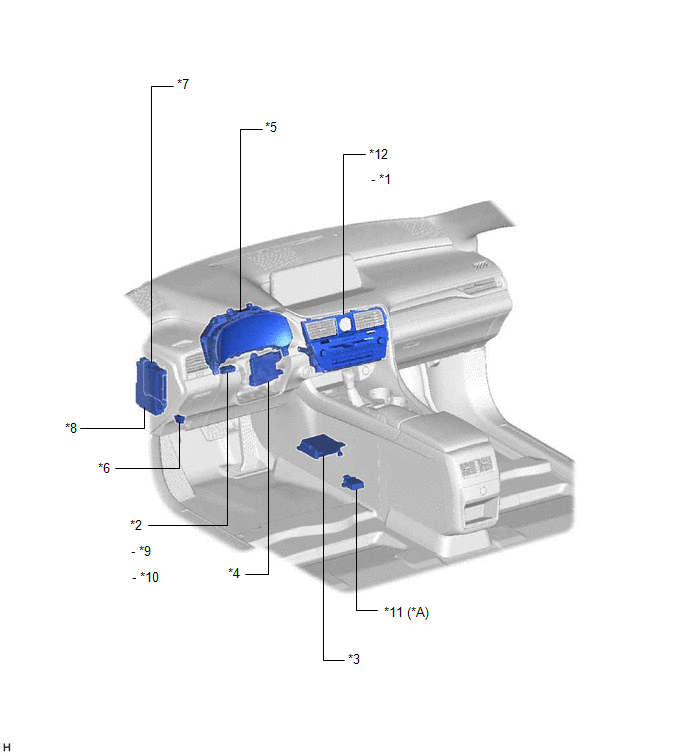

| *A | for TFT Meter Type | - | - |
| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | TRIP SWITCH |
| *3 | AIRBAG SENSOR ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - METER-IG2 FUSE - HAZ FUSE |
| *9 | LIGHT CONTROL RHEOSTAT SWITCH | *10 | ODO/TRIP SWITCH |
| *11 | YAW RATE SENSOR ASSEMBLY | *12 | RADIO RECEIVER ASSEMBLY |

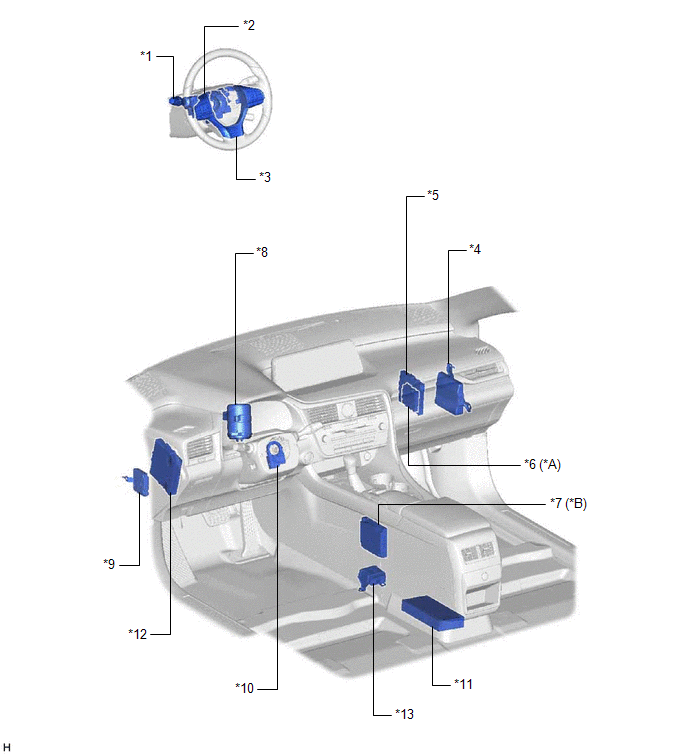

| *A | w/ Intelligent Clearance Sonar System | *B | w/ Manual (SOS) Switch |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | SKID CONTROL ECU ASSEMBLY |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | CLEARANCE WARNING ECU ASSEMBLY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | POWER STEERING ECU ASSEMBLY |
| *9 | DRIVING SUPPORT ECU ASSEMBLY | *10 | STEERING SENSOR |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *12 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *13 | VEHICLE APPROACHING SPEAKER CONTROLLER | - | - |
