Parts Location [08/2019 - ]: Illustration

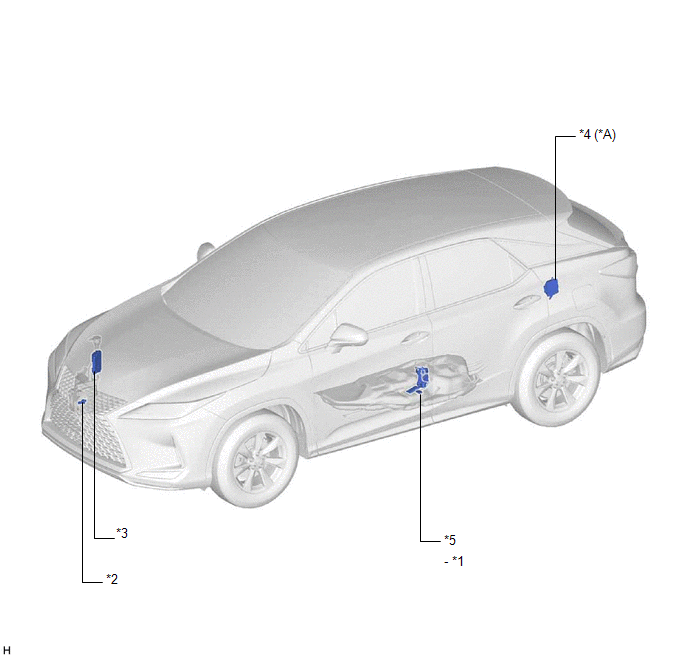

| *A | w/ Adaptive Variable Suspension System | - | - |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | ECM ASSEMBLY | *4 | ABSORBER CONTROL ECU |
| *5 | FUEL SUCTION TUBE PUMP AND GAUGE ASSEMBLY | - | - |

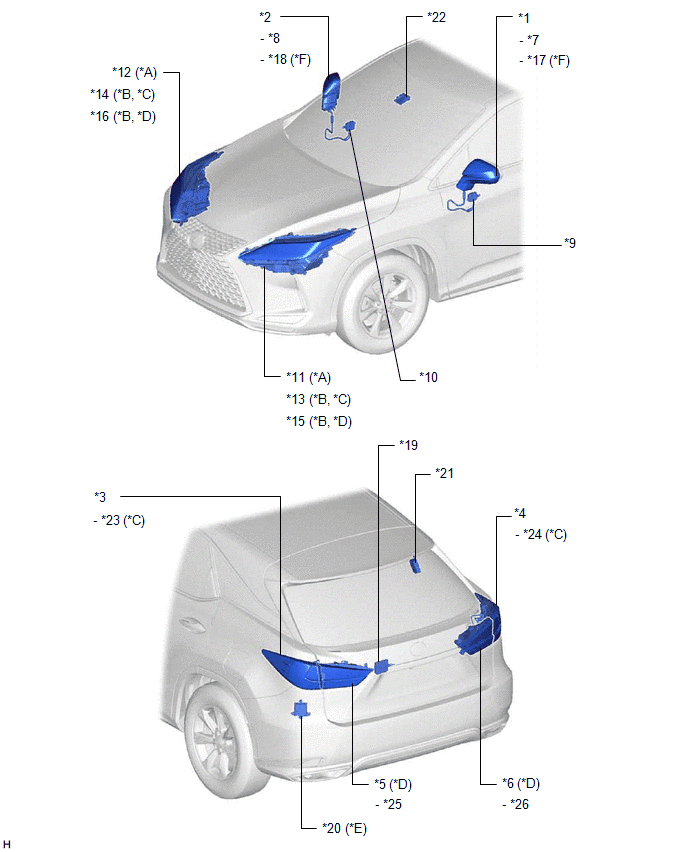

| *A | w/o Automatic Headlight Beam Level Control System | *B | w/ Automatic Headlight Beam Level Control System |
| *C | for Bulb Type Turn Signal Light | *D | for LED Type Turn Signal Light |
| *E | w/ Blind Spot Monitor System | *F | w/ Power Retract Mirror |
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH | *4 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *5 | REAR LIGHT ASSEMBLY LH | *6 | REAR LIGHT ASSEMBLY RH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *11 | HEADLIGHT ASSEMBLY LH - FRONT TURN SIGNAL LIGHT SOCKET LH - FRONT TURN SIGNAL LIGHT BULB LH |
*12 | HEADLIGHT ASSEMBLY RH - FRONT TURN SIGNAL LIGHT SOCKET RH - FRONT TURN SIGNAL LIGHT BULB RH |
| *13 | HEADLIGHT ASSEMBLY LH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - FRONT TURN SIGNAL LIGHT SOCKET LH - FRONT TURN SIGNAL LIGHT BULB LH |
*14 | HEADLIGHT ASSEMBLY RH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - FRONT TURN SIGNAL LIGHT SOCKET RH - FRONT TURN SIGNAL LIGHT BULB RH |
| *15 | HEADLIGHT ASSEMBLY LH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH |
*16 | HEADLIGHT ASSEMBLY RH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH |
| *17 | OUTER MIRROR RETRACTOR LH | *18 | OUTER MIRROR RETRACTOR RH |
| *19 | MULTIPLEX NETWORK DOOR ECU | *20 | BLIND SPOT MONITOR SENSOR LH |
| *21 | TIRE PRESSURE WARNING ECU AND RECEIVER | *22 | FORWARD RECOGNITION CAMERA |
| *23 | REAR LIGHT CORD LH | *24 | REAR LIGHT CORD RH |
| *25 | REAR LIGHT SOCKET AND WIRE LH | *26 | REAR LIGHT SOCKET AND WIRE RH |

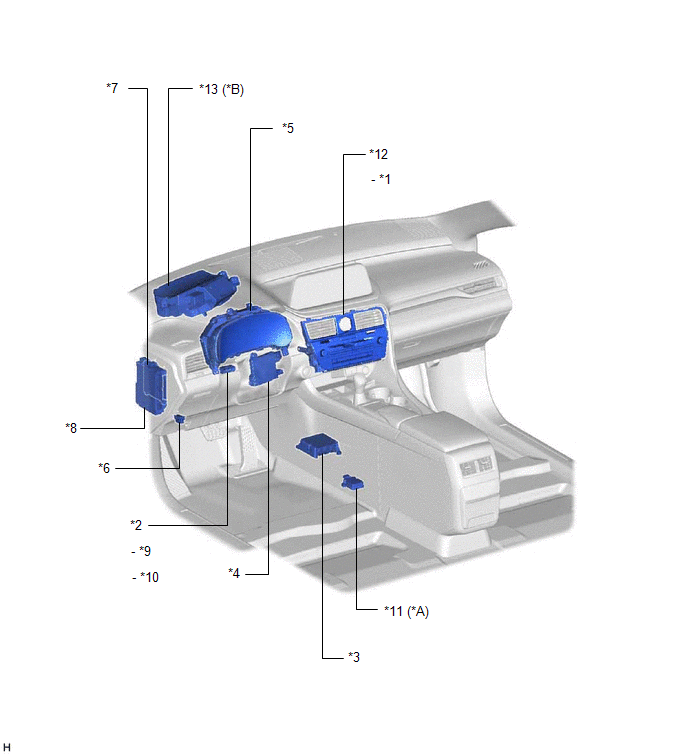

| *A | for TFT Meter Type | *B | w/ Headup Display System |
| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | TRIP SWITCH |
| *3 | AIRBAG SENSOR ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - METER-IG2 FUSE - HAZ FUSE |
| *9 | LIGHT CONTROL RHEOSTAT SWITCH | *10 | ODO/TRIP SWITCH |
| *11 | YAW RATE SENSOR ASSEMBLY | *12 | RADIO RECEIVER ASSEMBLY |
| *13 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) | - | - |

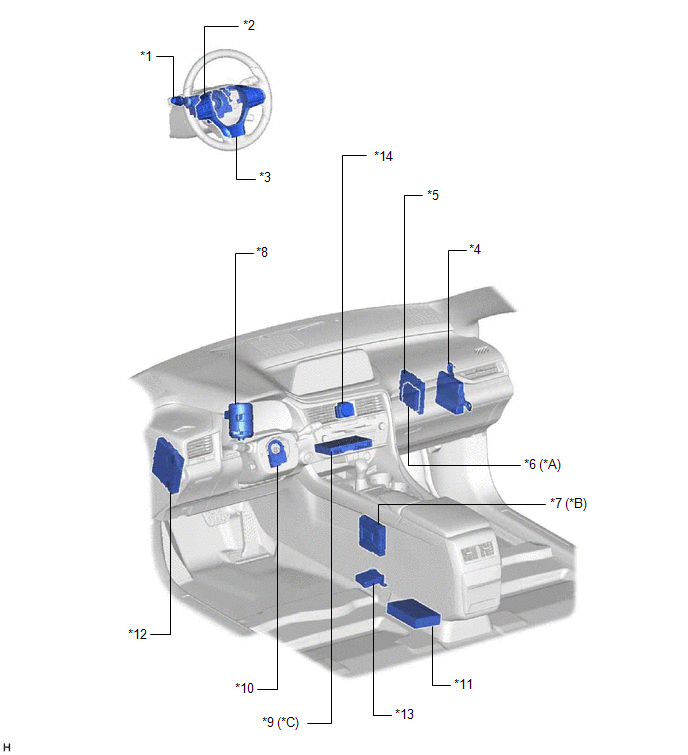

| *A | w/ Intelligent Clearance Sonar System | *B | w/ Manual (SOS) Switch |
| *C | w/ Navigation ECU | - | - |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | SKID CONTROL ECU ASSEMBLY |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | CLEARANCE WARNING ECU ASSEMBLY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | POWER STEERING ECU ASSEMBLY |
| *9 | NAVIGATION ECU | *10 | STEERING SENSOR |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *12 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *13 | VEHICLE APPROACHING SPEAKER CONTROLLER | *14 | CLOCK ASSEMBLY |
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | REAR CENTER SEAT INNER BELT ASSEMBLY | *2 | REAR SEAT INNER BELT ASSEMBLY LH |
| *3 | REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH | *4 | PARKING BRAKE ECU ASSEMBLY |
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | REAR SEAT INNER BELT ASSEMBLY LH | *2 | REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH |
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | REAR NO. 2 SEAT INNER BELT ASSEMBLY LH | *2 | REAR NO. 2 SEAT INNER BELT ASSEMBLY RH |
| *3 | PARKING BRAKE ECU ASSEMBLY | - | - |
