Installation [08/2016 - 12/2017]: Procedure

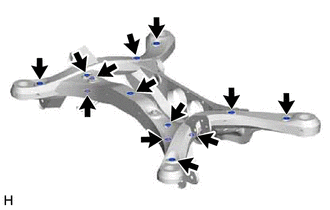

  1. INSTALL HOLE PLUG
    1. Install the 13 hole plugs to the rear suspension member sub-assembly as shown in the illustration.

      HINT:

      The upper and lower hole plug shapes are different.

      GTY620411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)
    1. Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
      GTY648942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Left Side of the Vehicle
      *d 45°
    2. Install SST as shown in the illustration.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member front body mounting cushion.

      GTY676368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY645940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  3. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)
    1. Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
      GTY657034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Left Side of the Vehicle
      *d 45°
    2. Install SST as shown in the illustration.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member front body mounting cushion.

      GTY680910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY645547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  4. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
    1. Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.
      GTY633068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Left Side of the Vehicle
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member rear body mount cushion LH.

      GTY649911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member rear body mount cushion LH until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mount cushion LH.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY685149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  5. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
    1. Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.
      GTY685040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Right Side of the Vehicle
      *d 15°
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member rear body mount cushion RH.

      GTY642641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member rear body mount cushion RH until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mount cushion RH.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY663169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  6. INSTALL REAR NO. 2 DIFFERENTIAL MOUNT CUSHION

    Refer to PROCEDURE - Step 3

  7. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  8. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  9. INSTALL REAR SUSPENSION MEMBER UPPER STOPPER
    1. Install the 2 rear suspension member upper stoppers to the rear suspension member sub-assembly.
  10. INSTALL REAR SUSPENSION MEMBER REAR UPPER STOPPER
    1. Install the 2 rear suspension member rear upper stoppers to the rear suspension member sub-assembly.
  11. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

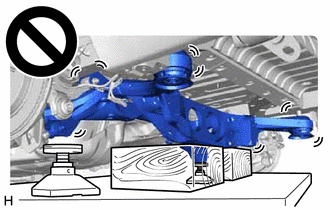

    1. Using an engine lifter, 2 attachments and 2 wooden blocks or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      GTY625086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Use attachments and wooden blocks to keep the rear suspension member sub-assembly level.
      • Keep supporting the rear suspension member sub-assembly until the installation has been completed.

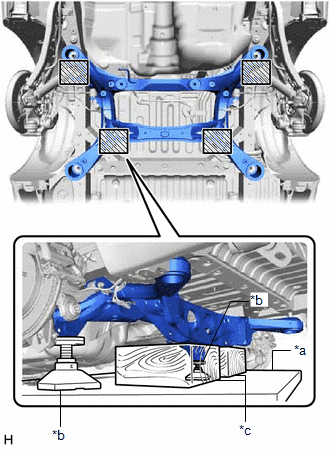

    2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle body.
      GTY657426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter
      *b Attachment
      *c Wooden Block
      Attachment and Wooden Block Placement Location

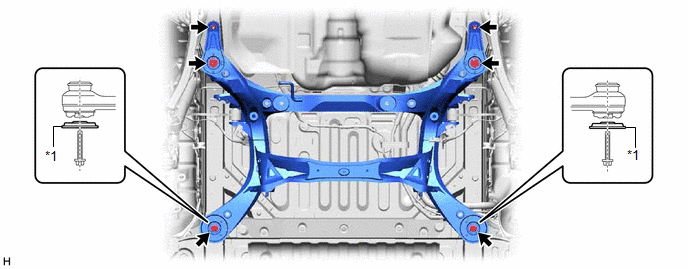

    3. Install the rear suspension member sub-assembly with the 2 rear lower suspension braces, rear lower suspension member stopper LH and rear lower suspension member stopper RH, with the 4 bolts and 2 nuts.
      GTY620573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Lower Suspension Brace - -

      Bolt

      Torque: 158 N*m (1611 kgf*cm, 117 ft.*lbf)

      Nut

      Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

      NOTE:

      Be sure to install the rear suspension member sub-assembly with the rear lower suspension braces facing in the correct direction as shown in the illustration.

    4. Lower the engine lifter.
  12. INSTALL NO. 3 FLOOR WIRE
    1. Install the No. 3 floor wire to the rear suspension member sub-assembly with the bolt and 3 clamps.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

      NOTE:

      Do not twist the No. 3 floor wire when installing it.

  13. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

    Refer to INSTALLATION [09/2015 - 12/2017]

  14. INSTALL REAR DRIVE SHAFT SNAP RING (for LH Side)

    Refer to PROCEDURE - Step 1

  15. INSTALL REAR DRIVE SHAFT SNAP RING (for RH Side)

    HINT:

    Perform the same procedure as for the LH side.

  16. INSTALL REAR DRIVE SHAFT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  17. INSTALL REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  18. CONNECT REAR UPPER CONTROL ARM ASSEMBLY LH
    1. Using a brass bar and a hammer, push out the bushing until it is positioned as shown in the illustration.

      HINT:

      Pushing out the bushing makes it easier to connect the rear upper control arm assembly LH.

      GTY625121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the rear upper control arm assembly LH to the rear axle carrier sub-assembly LH with the bolt and nut.

      Torque: 145 N*m (1479 kgf*cm, 107 ft.*lbf)

      NOTE:
      • Insert the bolt with the threaded end facing the rear of the vehicle.
      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
      GTY625119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. CONNECT REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  20. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  21. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  22. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  23. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  24. INSTALL REAR LOWER COIL SPRING INSULATOR LH

    Refer to PROCEDURE - Step 2

  25. INSTALL REAR LOWER COIL SPRING INSULATOR RH

    HINT:

    Perform the same procedure as for the LH side.

  26. INSTALL REAR COIL SPRING LH

    Refer to PROCEDURE - Step 3

  27. INSTALL REAR COIL SPRING RH

    HINT:

    Perform the same procedure as for the LH side.

  28. INSTALL REAR STABILIZER BAR

    Refer to PROCEDURE - Step 3

  29. INSTALL REAR STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  30. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  31. INSTALL REAR SPEED SENSOR LH (w/o AVS)
    1. Install the rear speed sensor LH with the 2 bolts and nut.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the connector.
  32. INSTALL REAR SPEED SENSOR RH (w/o AVS)
    1. Install the rear speed sensor RH with the 2 bolts and nut.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the connector and engage the 2 clamps.
  33. INSTALL REAR SKID CONTROL SENSOR WIRE LH (w/ AVS)
    1. Install the rear skid control sensor wire LH with the 2 bolts and 4 nuts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the 3 connectors.
  34. INSTALL REAR SKID CONTROL SENSOR WIRE RH (w/ AVS)
    1. Install the rear skid control sensor wire RH with the 2 bolts and 4 nuts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the 3 connectors and engage the 3 clamps.
  35. CONNECT REAR SPEED SENSOR LH
    1. Install the rear speed sensor LH to the rear trailing arm assembly LH with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      Do not twist the rear speed sensor when installing it.

    2. Connect the rear speed sensor LH to the rear axle carrier sub-assembly LH with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      Do not twist the rear speed sensor LH when installing it.

  36. CONNECT REAR SPEED SENSOR RH

    HINT:

    Perform the same procedure as for the LH side.

  37. CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

    Refer to PROCEDURE - Step 4

  38. CONNECT NO. 1 PARKING BRAKE WIRE ASSEMBLY

    HINT:

    Perform the same procedure as for the LH side.

  39. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    Refer to INSTALLATION [09/2015 - 08/2019]

  40. INSTALL REAR AXLE SHAFT NUT LH

    Refer to PROCEDURE - Step 10

  41. INSTALL REAR AXLE SHAFT NUT RH

    HINT:

    Perform the same procedure as for the LH side.

  42. CONNECT REAR FLEXIBLE HOSE LH
    1. Connect the rear flexible hose LH to the rear upper control arm assembly LH with the bolt.

      Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

      GTY620193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. CONNECT REAR FLEXIBLE HOSE RH

    HINT:

    Perform the same procedure as for the LH side.

  44. STABILIZE SUSPENSION

    Refer to PROCEDURE - Step 5

  45. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  46. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  47. INSTALL REAR SUSPENSION ARM COVER LH

    Refer to PROCEDURE - Step 8

  48. INSTALL REAR SUSPENSION ARM COVER RH

    HINT:

    Perform the same procedure as for the LH side.

  49. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to INSTALLATION [09/2015 - ]

  50. INSTALL TAIL EXHAUST PIPE ASSEMBLY

    Refer to INSTALLATION [09/2015 - 12/2017]

  51. INSTALL REAR WHEEL

    Refer to PROCEDURE - Step 1

  52. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  53. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  54. ADD DIFFERENTIAL OIL

    Refer to PROCEDURE - Step 2

  55. INSPECT FOR DIFFERENTIAL OIL LEAK
  56. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9

  57. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [08/2016 - 12/2017]

  58. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [09/2015 - 08/2019]

  59. PERFORM INITIALIZATION
    • Intelligent clearance sonar system
    • Intuitive parking assist system (w/ Intelligent Clearance Sonar System)
    		 Refer to CALIBRATION [08/2016 - 12/2017]
    Parking assist monitor system for Initialization: Refer to INITIALIZATION [09/2015 - 08/2019]
    for Calibration: Refer to CALIBRATION [09/2015 - 12/2017]
    Panoramic view monitor system for Initialization: Refer to INITIALIZATION [09/2015 - 08/2019]
    for Calibration: Refer to CALIBRATION [09/2015 - 12/2017]
    • Automatic headlight beam level control system
    • AFS (Adaptive front-lighting system)
    		 Refer to INITIALIZATION [09/2015 - 08/2019]
scientia non olet · About LEMON Manuals
