Exterior Panels / Trim - Service Information (2 Of 2)
>>
Roof Drip Side Finish Moulding
>>
Components [09/2015 - ]
Components [09/2015 - ]

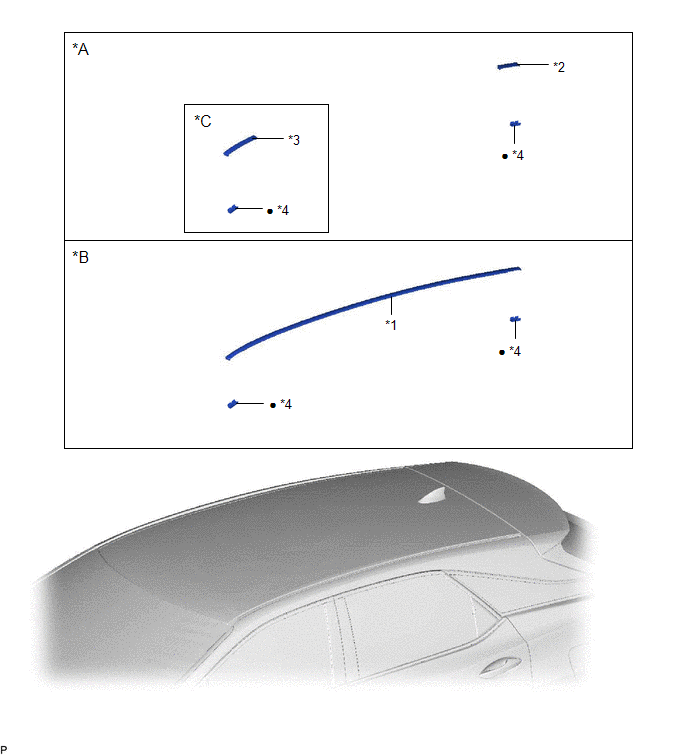

Fig 1: Roof Drip Side Finish Moulding Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
w/ Roof Rack
*B
w/o Roof Rack
*C
except Panoramic Moon Roof
-
-
*1
CENTER ROOF DRIP SIDE FINISH MOULDING
*2
REAR ROOF DRIP SIDE FINISH MOULDING
*3
ROOF DRIP SIDE FINISH MOULDING
*4
ROOF DRIP SIDE FINISH MOULDING CLIP
•
Non-reusable part
-
-
