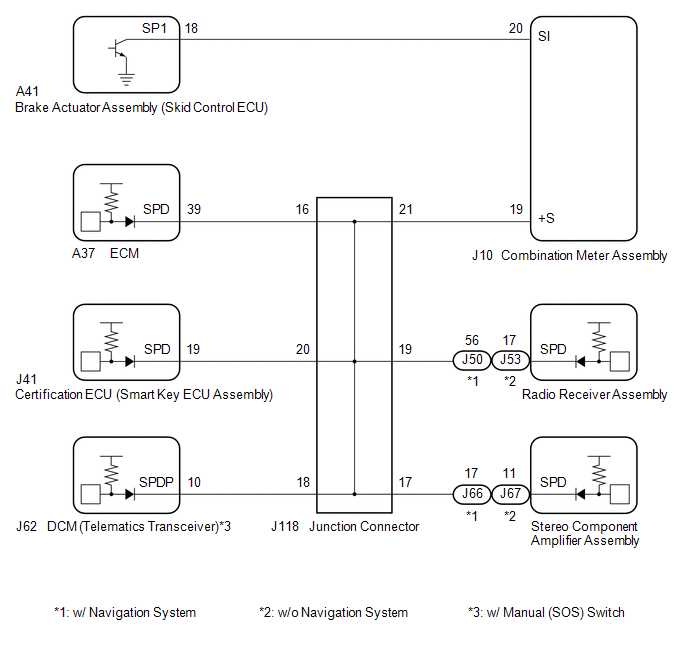

Speed Signal Circuit [09/2015 - 08/2019]: Wiring Diagram

GTY677404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
