DTC B1507: Open in Turn Signal Circuit [08/2019 - ]: Wiring Diagram

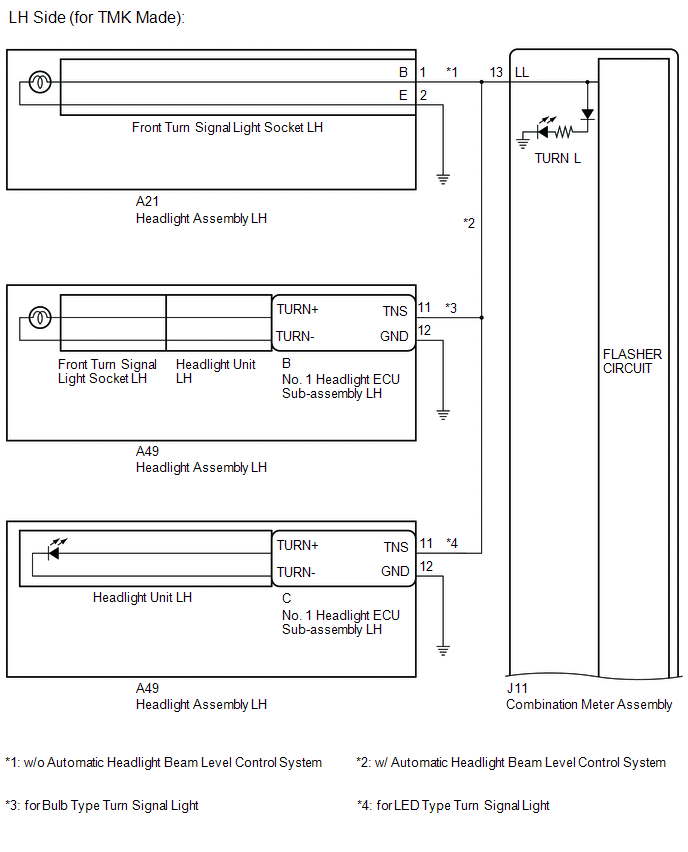

GTY962460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

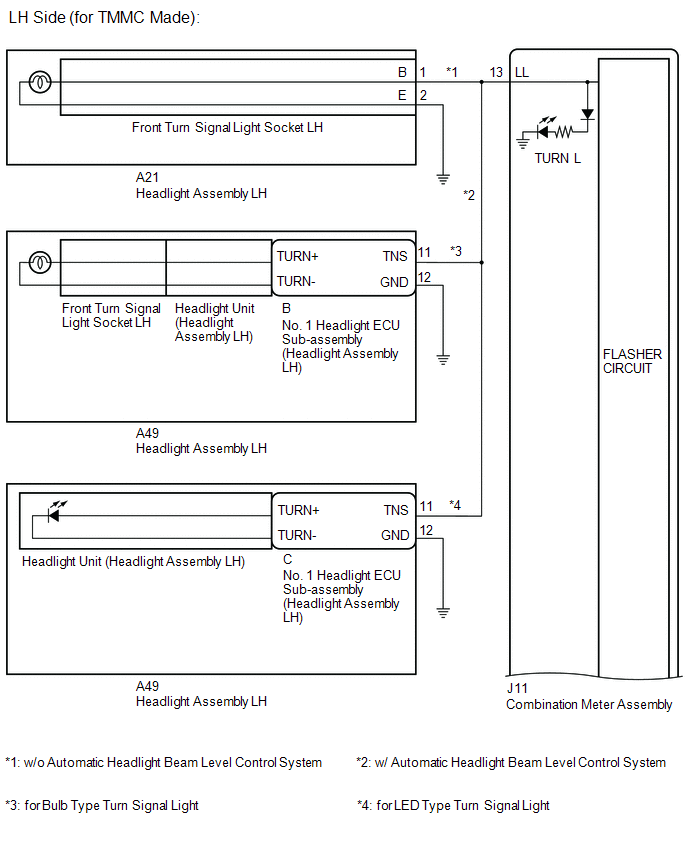

GTY961288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY961797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

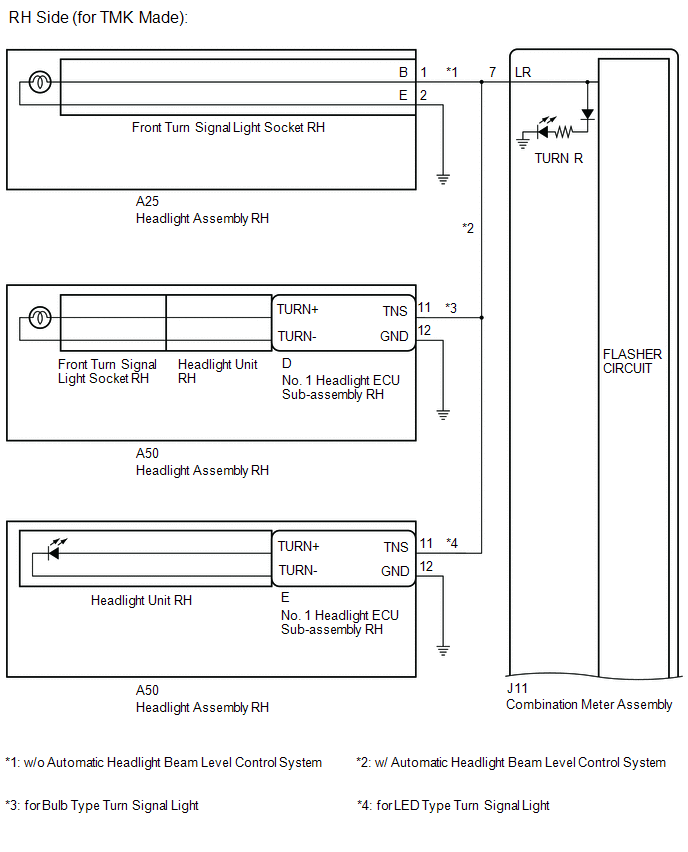

GTY962459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

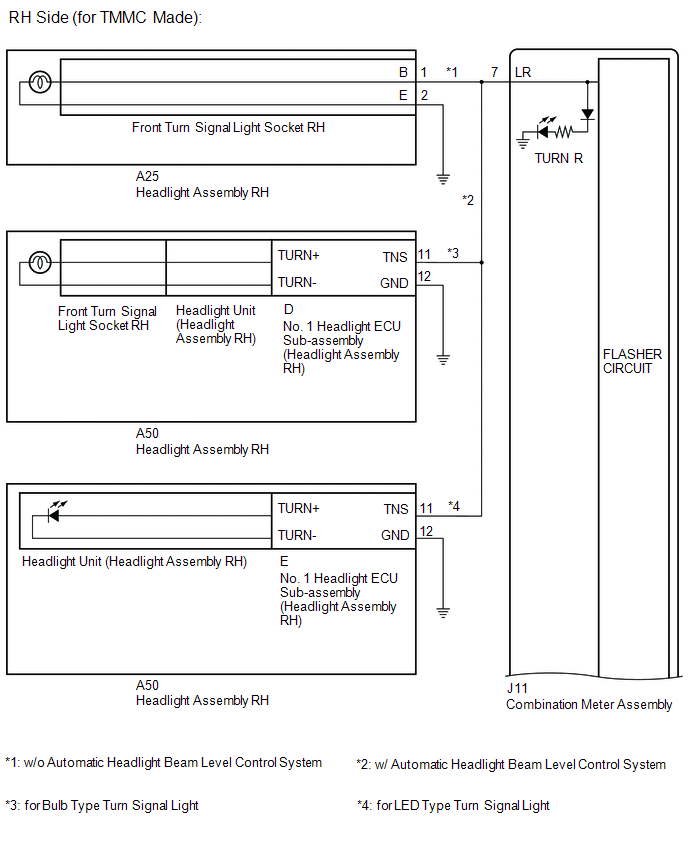

GTY960547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

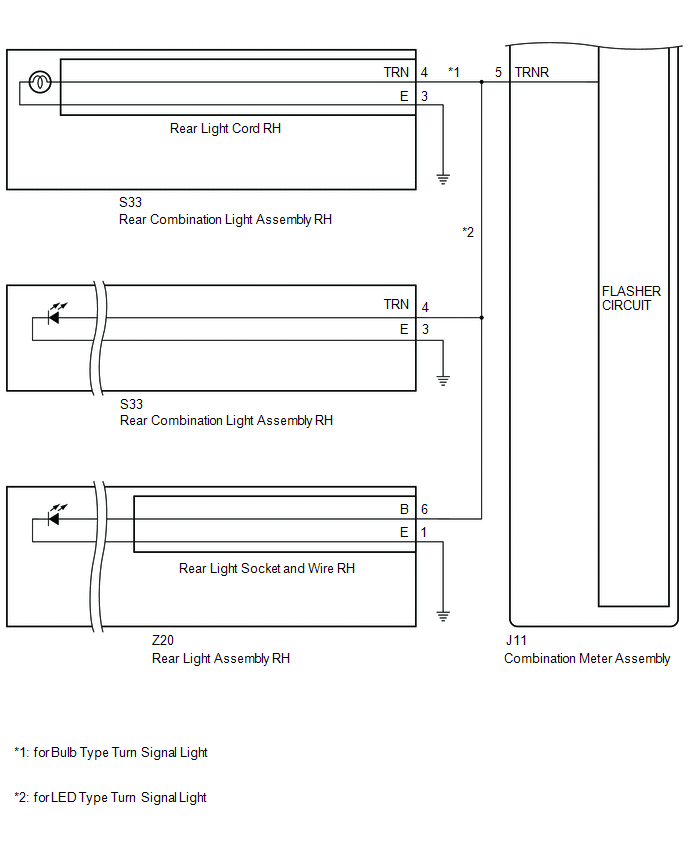

GTY962951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
