Removal [09/2014 - 03/2019]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [09/2014 - 11/2017] , or refer to REMOVAL [11/2017 - 03/2019]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

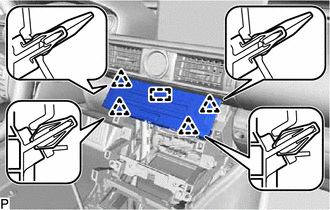

    1. Disengage the 4 clips and guide.
      GTY513764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the air conditioning control assembly.
