Removal [03/2019 - ]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
    1. Disengage the 4 clips and guide.

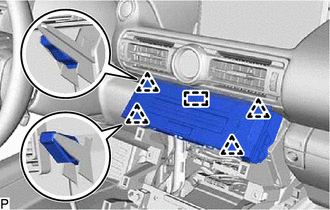

      GTY961143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the air conditioning control assembly.
