Engine Control System - Diagnostic Codes (8 Of 9)
>>
SFI System
>>
DTC P1360: "A" Camshaft Position Actuator Circuit Open, Low, High Bank1; DTC P1361: "A" Camshaft Position Actuator Circuit Open, Low, High Bank2 [09/2014 - ]
>>

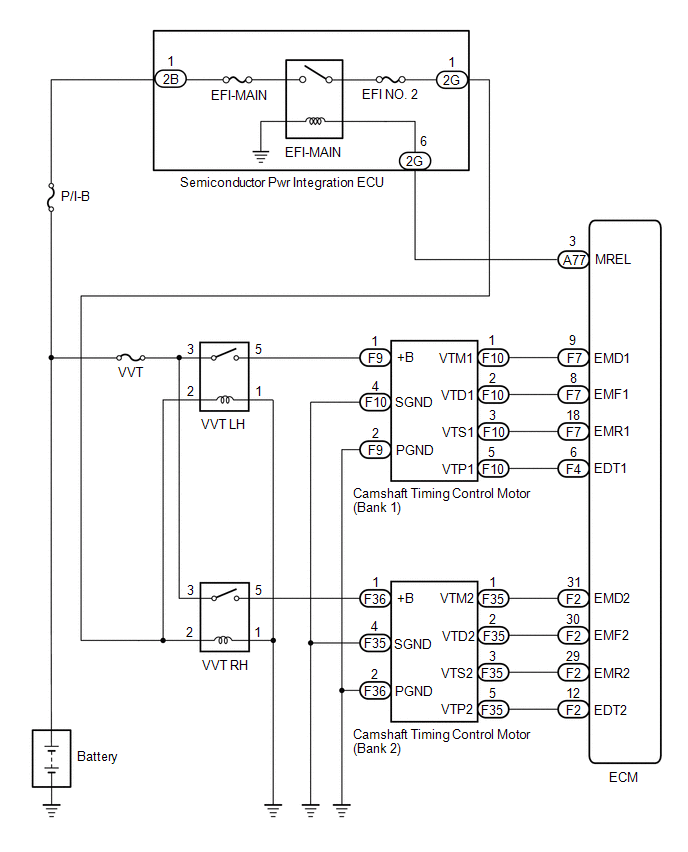

Wiring Diagram
DTC P1360: "A" Camshaft Position Actuator Circuit Open, Low, High Bank1; DTC P1361: "A" Camshaft Position Actuator Circuit Open, Low, High Bank2 [09/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
