Removal [11/2017 - 09/2020]: Procedure

  1. REMOVE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE DCM (TELEMATICS TRANSCEIVER)

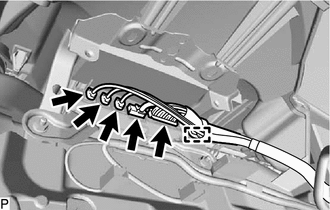

    1. Disconnect the 5 connectors.
      GTY797673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

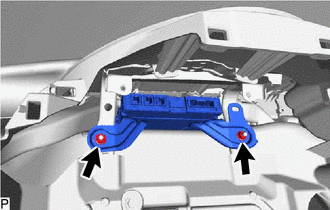

    3. Remove the 2 nuts and DCM (telematics transceiver).
      GTY797672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
