Removal [09/2020 - ]: Procedure

  1. REMOVE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

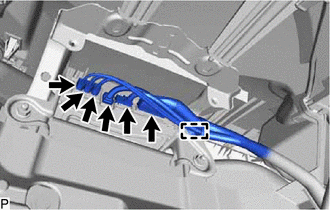

    1. Disconnect the 6 connectors.
      GTY962786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

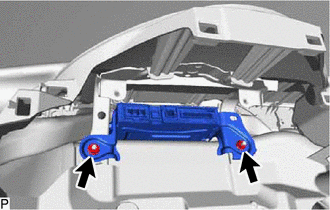

    3. Remove the 2 nuts and DCM (telematics transceiver) with bracket.
      GTY962776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 TELEPHONE BRACKET

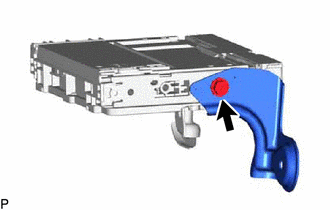

    1. GTY962775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the screw and No. 2 telephone bracket.

  4. REMOVE NO. 1 TELEPHONE BRACKET

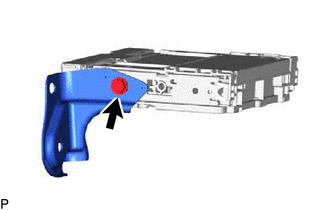

    1. GTY961758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the screw and No. 1 telephone bracket.

  5. REMOVE DCM (TELEMATICS TRANSCEIVER)
