Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

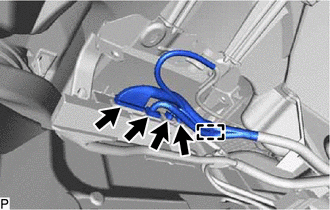

    1. Disconnect the 4 connectors.
      GTY456142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

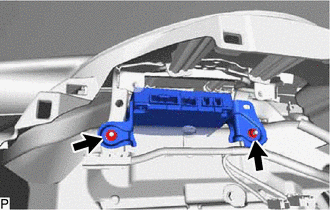

    3. Remove the 2 nuts and DCM (telematics transceiver) with bracket.
      GTY468535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 DCM (TELEMATICS TRANSCEIVER) BRACKET
    1. GTY456143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 screws and No. 1 DCM (telematics transceiver) bracket.

  4. REMOVE NO. 2 DCM (TELEMATICS TRANSCEIVER) BRACKET
    1. GTY456144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

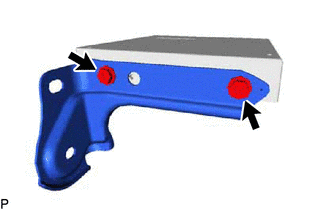

      Remove the 2 screws and No. 2 DCM (telematics transceiver) bracket.

  5. REMOVE DCM (TELEMATICS TRANSCEIVER) ASSEMBLY
