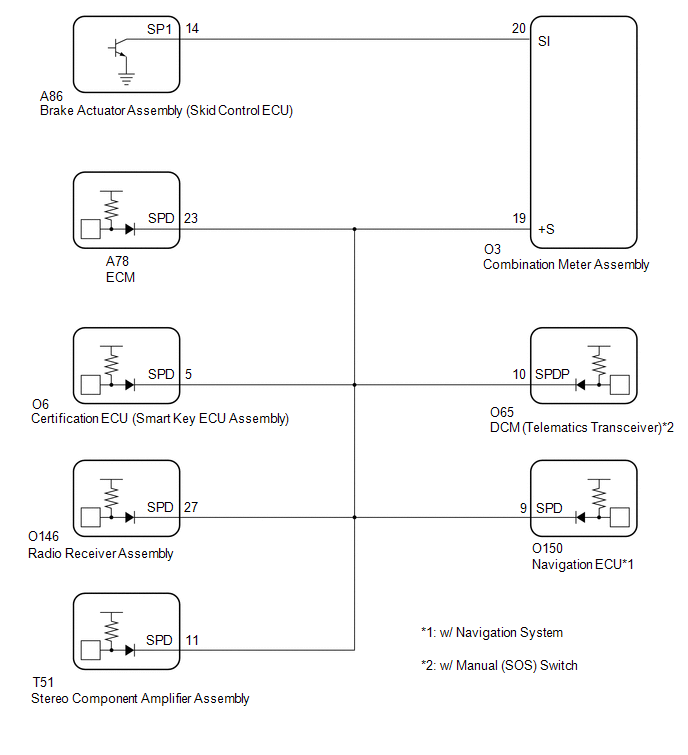

Speed Signal Circuit [11/2017 - 09/2020]: Wiring Diagram

GTY779082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
