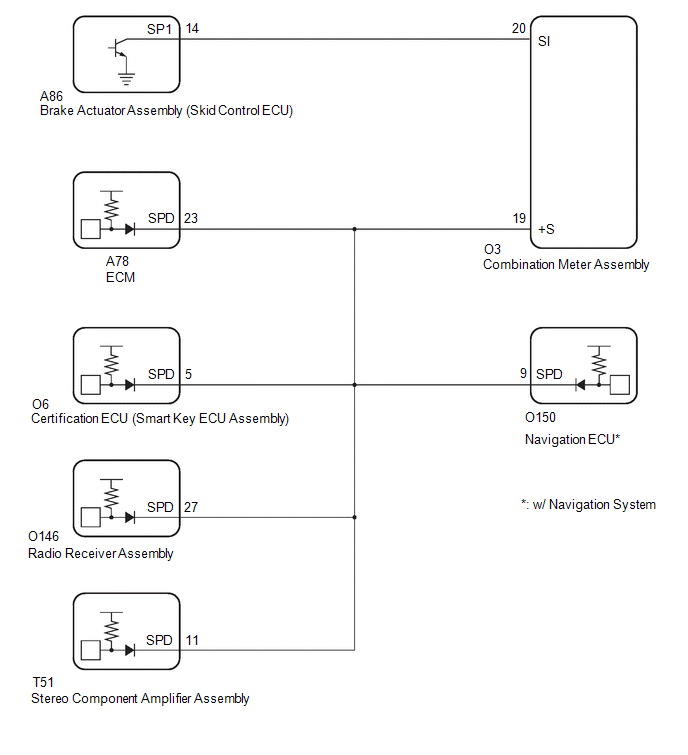

Speed Signal Circuit [09/2020 - ]: Wiring Diagram

GTY964148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
