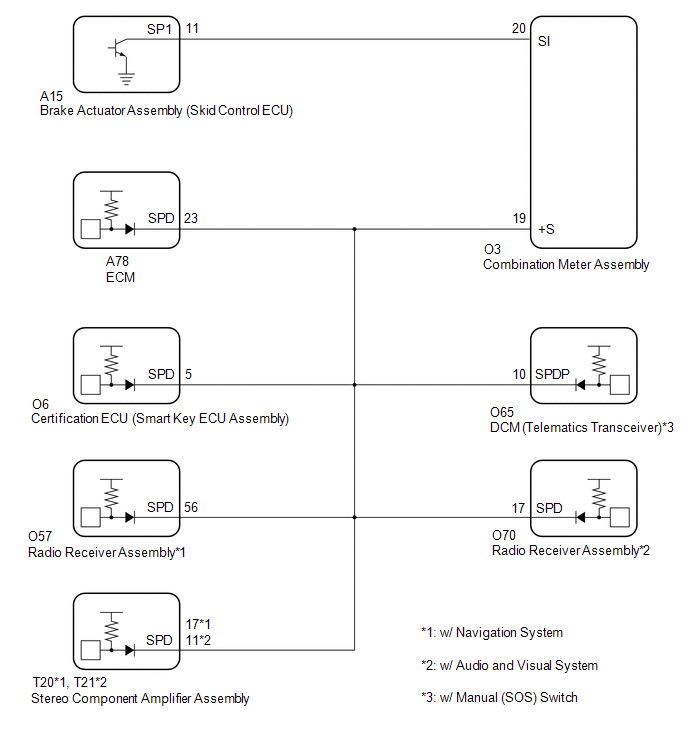

DTC B15C2: Speed Signal Malfunction [09/2014 - 11/2017]: Wiring Diagram

GTY507369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
