DTC B15C2: Speed Signal Malfunction [09/2014 - 11/2017]: Procedure

1. Enter the "System Sensors Check" screen. Refer to Check GPS and Vehicle Sensors in Operation Check.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Refer to OPERATION CHECK [09/2014 - 11/2017]

2. While driving the vehicle, compare the value of "Speed" to the reading on the speedometer. Check if these readings are almost equal.

   HINT:

   The combination meter assembly receives the vehicle speed signal from the skid control ECU via CAN communication. Therefore, perform the following inspection referring to values on the Data List of the skid control ECU because it is the source of the vehicle speed signal.

   OK

   Vehicle speed displayed on the "Vehicle Sensors" screen is almost the same as the actual vehicle speed measured using the Techstream.

   Refer to DATA LIST / ACTIVE TEST [09/2014 - 11/2017]

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [09/2014 - 11/2017]

Result:

NG

See step  2

1. Check the output waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

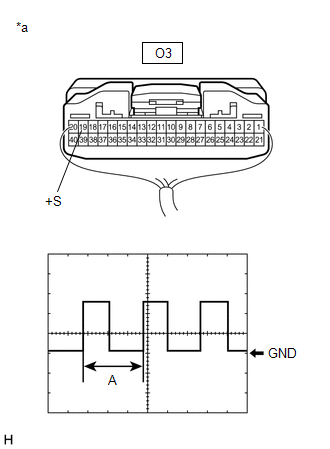

   *a	Component with harness connected (Combination Meter Assembly)

   1. Remove the combination meter assembly with the connector still connected.
   2. Connect an oscilloscope to terminal O3-19 (+S) and body ground.
   3. Turn the engine switch on (IG).
   4. Turn a wheel slowly.
   5. Check the signal waveform according to the condition(s) in the table below.

      Item	Condition
      Measurement terminal	O3-19 (+S) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Vehicle condition	Wheel being rotated

      OK

      The waveform is similar to that shown in the illustration.

      HINT:

      When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

   Result

   Proceed to
   OK
   NG

Result:

NG

GO TO METER / GAUGE SYSTEM. Refer to  Speed Signal Circuit [09/2014 - 11/2017]

Result:

OK

See step  3

1. Check the input waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

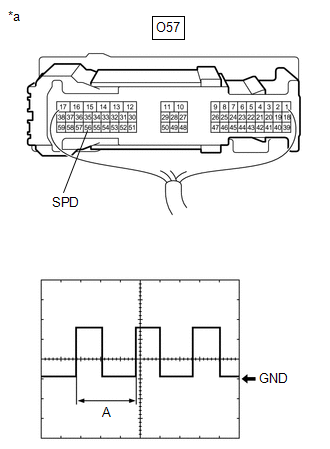

   *a	Component with harness connected (Radio Receiver Assembly)

   1. Remove the radio receiver assembly with the connector still connected.
   2. Connect an oscilloscope to terminal O57-56 (SPD) and body ground.
   3. Turn the engine switch on (IG).
   4. Turn a wheel slowly.
   5. Check the signal waveform according to the condition(s) in the table below.

      Item	Condition
      Measurement terminal	O57-56 (SPD) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Vehicle condition	Wheel being rotated

      OK

      The waveform is similar to that shown in the illustration.

      HINT:

      When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [09/2014 - 11/2017]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER ASSEMBLY - RADIO RECEIVER ASSEMBLY)
