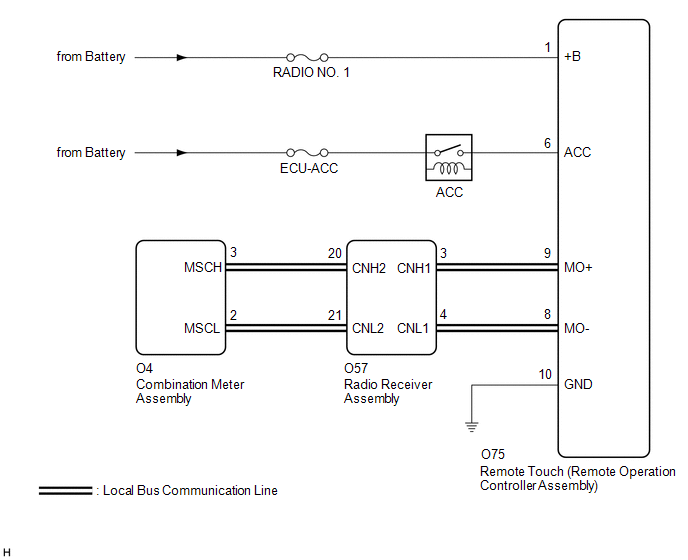

DTC B1321: Lost Communication with EMV; DTC B1323: Lost Communication with Haptic Device; DTC B1324: Lost Communication with Meter; DTC B1563: Haptic Device Disconnected [09/2014 - 11/2017]: Wiring Diagram

GTY519834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
